Home > products > Hybrid Stepper Motor > Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401 1.68A 40mm 2 Phase 1.8 Degree

Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401 1.68A 40mm 2 Phase 1.8 Degree

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0261-24BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
High Light:

Hybrid NEMA 17 Stepper Motor

,

40mm NEMA 17 Stepper Motor

Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
24mm Length
Voltage:
3.27V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
24mm Length
Voltage:
3.27V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

1.68A Motori per stadi 40mm 2 Phase 1.8degree Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Appearance

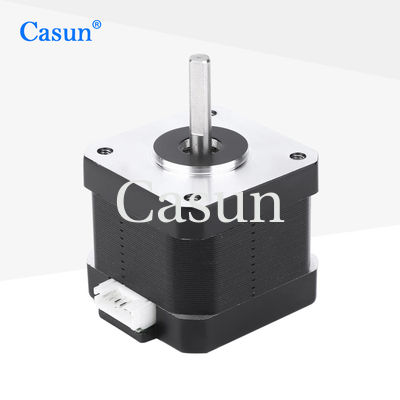

Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401 1.68A 40mm 2 Phase 1.8 Degree 0

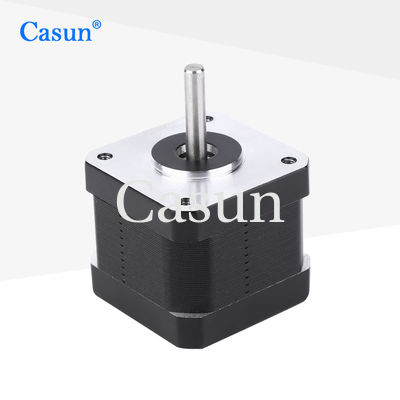

Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401 1.68A 40mm 2 Phase 1.8 Degree 1

Dimensions

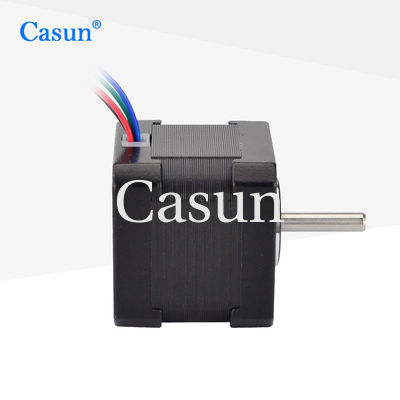

Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401 1.68A 40mm 2 Phase 1.8 Degree 2















Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

450 mN.m

Resistance

1.95 ohm

Inductance

4.4 mH

Rotor Inertia

57 g-cm²

Motor weight

0. kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

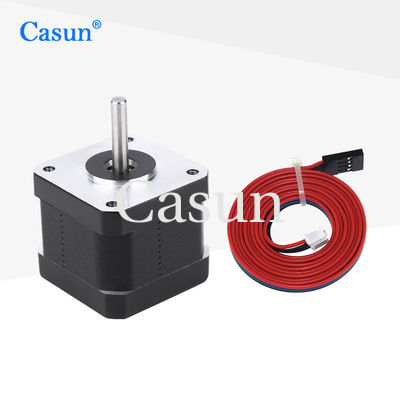

Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401 1.68A 40mm 2 Phase 1.8 Degree 3 Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401 1.68A 40mm 2 Phase 1.8 Degree 4 Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401 1.68A 40mm 2 Phase 1.8 Degree 5 Hybrid 3.27V NEMA 17 Stepper Motor 17HS4401 1.68A 40mm 2 Phase 1.8 Degree 6



Please click the "Get a quote" button below to tell us your requirements.
