424248mm Nema 17 Stepper Motor 2 Phase 590mN.m High Torque

424248mm Nema 17 Stepper Motor 2 Phase 590mN.m High Torque

Brand Name:	Casun
Model Number:	42SHD4425-24BH
MOQ:	1PC
Price:	$5.12-$7.45
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

590mN.m

Current:

Motor Length:

48mm

Shaft:

Round Shaft 24mm Length

Voltage:

2.8V

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Nema 17 Stepper Motor 2 Phase

Nema 17 Stepper Motor High Torque

Product Description

42×42×48mm NEMA 17 Stepper Motor 2 Phase 590mN.m High Torque

Casun stepper motor featuring 590mN.m high torque in a compact 42×42×48mm NEMA 17 frame. This 2-phase bipolar stepper motor delivers reliable performance with 1.8-degree step angle and 2A rated current. The hybrid stepper motor series offers powerful holding torque and is compatible with microstepping drivers for reduced vibration and higher resolution.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Product Views

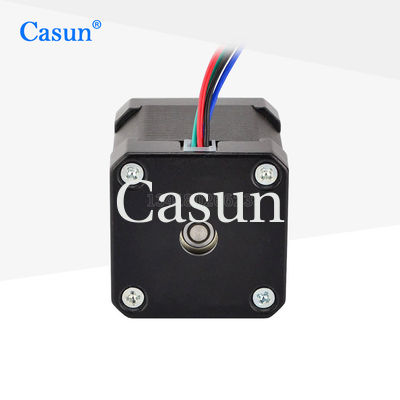

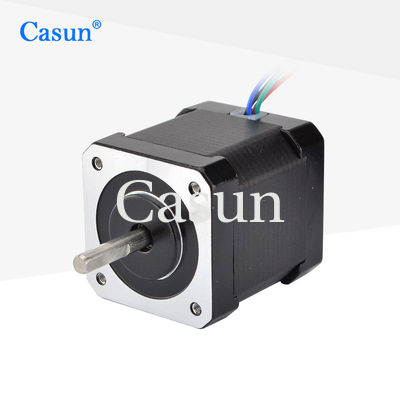

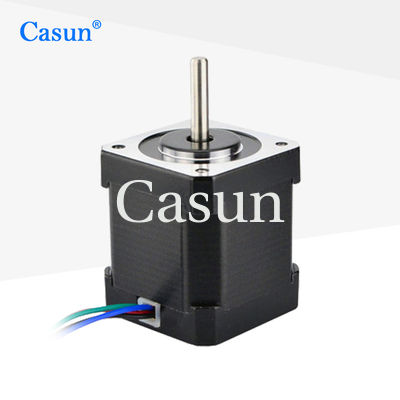

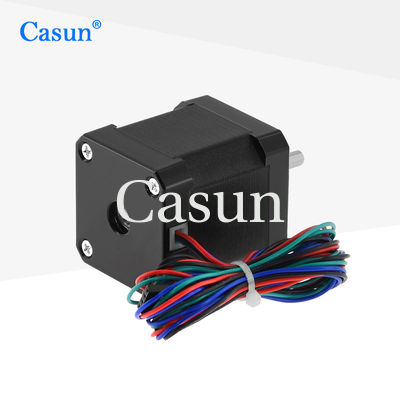

Appearance

Dimensions

Motor Specifications

Step Angle

1.8°

Frame Size

42 mm

Number of Phase

2 Phase

Rated Current

2 A

Holding Torque

590 mN.m

Resistance

1.4 ohm

Inductance

3 mH

Rotor Inertia

15 g·cm²

Motor Weight

0.82 kg

Number of Leads

Connection

Bipolar

Operating Specifications

Maximum Temperature

80°C maximum

Ambient Temperature

-20°C to 50°C

Storage Temperature

-20°C to 100°C

Humidity Range

85% or less, non-condensing

Magnet Wire Insulation

Class B 130°C

Insulation Resistance

100M Ohm at 500 VDC

Dielectric Strength

500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13 N.m	1.8°	20 mm	D Shaft-20mm	1.0 A
42SHD4003	0.26 N.m	1.8°	34 mm	D Shaft-20mm	0.4 A
42SHD0261	0.45 N.m	1.8°	40 mm	D Shaft-20mm	1.68 A
42SHD4425	0.59 N.m	1.8°	48 mm	D Shaft-24mm	2.0 A
42SHD4813	0.8 N.m	1.8°	60 mm	D Shaft-24mm	2.1 A

Available Options

Encoder

Brake

Gearbox

Shaft

Custom Solutions Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), and other global markets. Our office has about 51-100 people.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us instead of other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, PayPal, Western Union, Cash, Escrow; Languages Spoken: English, Chinese, Japanese

Please click the "Get a quote" button below to tell us your requirements.
