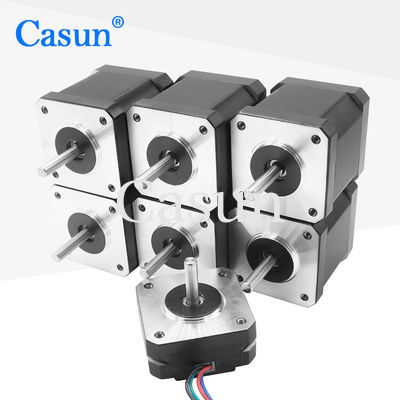

48mm Length Casun Stepper Motor Voron2.4 Voron2.4 High Temperature Resistance 180 Degrees

48mm Length Casun Stepper Motor Voron2.4 Voron2.4 High Temperature Resistance 180 Degrees

Brand Name:	Casun
Model Number:	17HS08-1004S-H/17HS19-2004S1-H
MOQ:	1PC
Price:	$101-105
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

130/590mN.m

Current:

1.0A

Motor Length:

20/48mm

Shaft:

20/24mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

48mm Length Casun Stepper Motor

Casun Stepper Motor High Temperature Resistance

Product Description

48mm Length Casun Stepper Motor Voron2.4 - High Temperature Resistance 180°

Product Overview

Casun stepper motor designed specifically for the Voron 2.4 3D printer (upgraded version), featuring exceptional high temperature resistance up to 180 degrees Celsius.

The Voron 2.4 is a high-performance, open-source 3D printer designed by Voron Design, featuring a CoreXY configuration that provides precise and fast movements of the print head through a combination of belts and pulleys.

With a build volume of 350×350×400mm, the Voron 2.4 is suitable for printing large objects or multiple smaller objects simultaneously. It features a direct drive extruder for superior filament control and print quality, compatible with a wide range of materials including PLA, ABS, PETG, and TPU.

Built with high-quality components including a rigid frame, linear rails, and heated bed with removable magnetic PEI-coated spring steel sheet, the Voron 2.4 delivers improved print quality, faster speeds, and greater reliability. Its modular design allows for easy maintenance and upgrades.

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	42mm
Number of Phase	2 Phase
Rated Current	3.5A
Holding Torque	130/590 mN.m
Number of Leads	4
Connection	Bipolar
Motor Weight	2kg

Technical Documentation

Dimensions

Torque Curves

Customization Options

If our standard motor configuration doesn't meet your specific requirements, we offer comprehensive customization services tailored to your needs.

Encoder

Brake

Gearbox

Connector

Customization options include but are not limited to: special shafts, winding parameters, installation dimensions, lead wires with specific requirements, connectors, and other specialized components.

Need a Custom Solution?

Get a Quote
