17HS08-1004S 1A Nema 17 Stepper Motor 424220mm 130mN.M For Stage Light

Name: 17HS08-1004S 1A Nema 17 Stepper Motor 42*42*20mm 130mN.M For Stage Light
Brand: GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD
SKU: 17HS08-1004S
Price: 4.54 USD
Availability: InStock

Brand Name:	CASUN
Model Number:	17HS08-1004S
MOQ:	1pcs-10pcs
Price:	$4.54/pcs - $6.34/pcs
Payment Terms:	L/C, D/A, T/T
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angle:

1.8degree

Phase:

Rated Voltage:

3.5V

Rate Current:

Holding Torque:

130mN.m

Detent Torque:

3mN.m

Phase Resistance:

3.5ohm

Phase Inductance:

4.5mH

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

1A Nema 17 Stepper Motor

17HS08-1004S Nema 17 Stepper Motor

Product Description

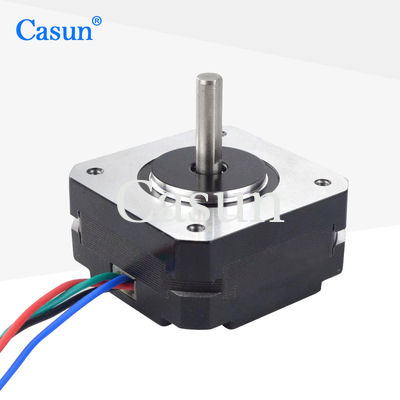

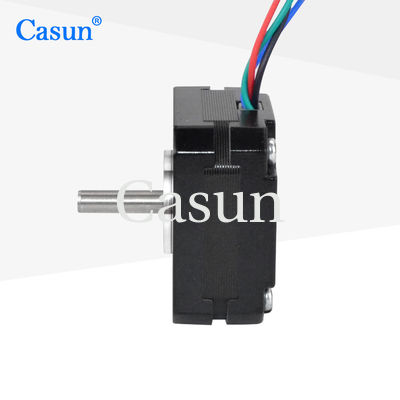

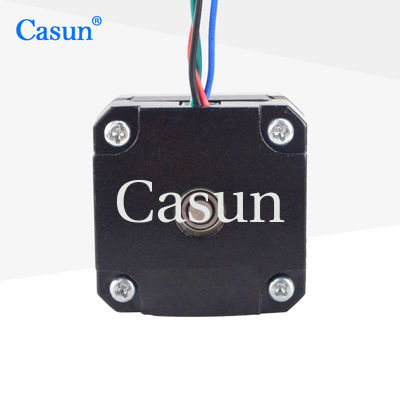

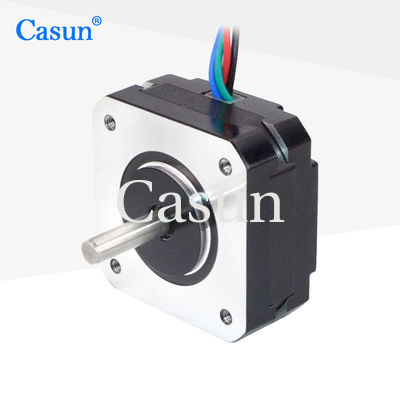

17HS08-1004S 1A Nema 17 Stepper Motor 42×42×20mm 130mN.M For Stage Light

17HS08-1004S 1A Nema 17 Stepper Motor 42×42×20mm 130mN.m black color for stage light

Stepper Motor NEMA 17 3.5V 1A available in a variety of resolutions. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in various sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	1 A
Resistance	3.5 Ohm
Rotor Inertia	2 g-cm²
Motor Weight	0.1 kg
Lead Screw	Tr3.5×4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Shaft Radial Play: 0.02Max. (450g-load)

Shaft Axial Play: 0.08Max. (450g-load)

Max. Radial Force: 28N (20mm from the flange)

Max. Axial Force: 10N

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, travel, linear travel per step, etc.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery

Accepted Payment Currency: USD, CNY

Accepted Payment Type: T/T, L/C, D/P D/A, PayPal

Language Spoken: English, Chinese, Japanese

Get a quote

Please click the "Get a quote" button above to tell us your requirements.
