Home > products > Pancake Stepper Motor > 0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine

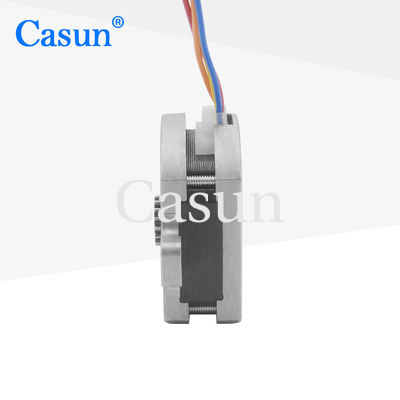

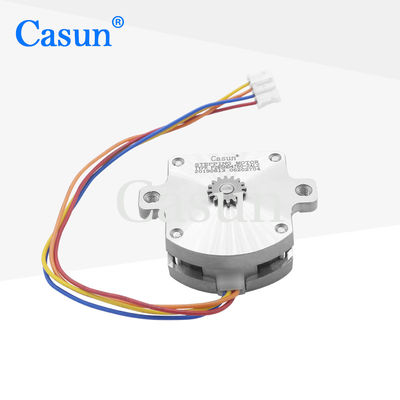

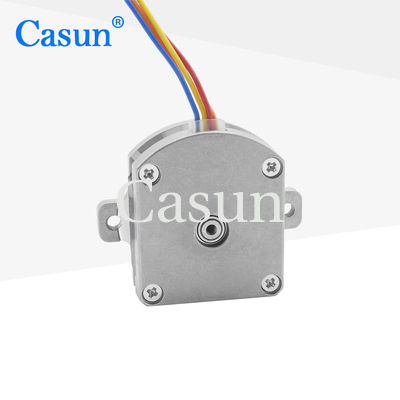

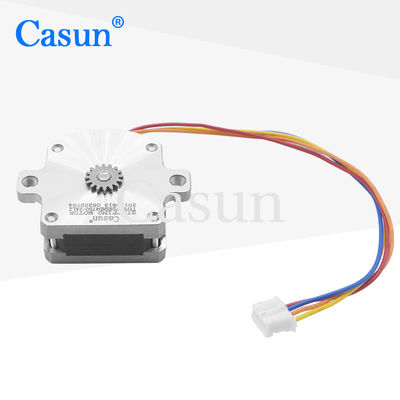

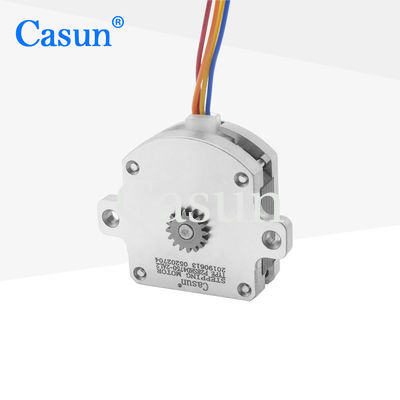

0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine
0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine
0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine
0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine
0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine
0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine
0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine

0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: P28SHD4750-2AL2

Payment & Shipping Terms

Minimum Order Quantity: 1pcs-10pcs

Price: $11.9-$15

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

Flat Nema 11 Stepper Motor

,

25mN.M Nema 11 Stepper Motor

Step Angle:
1.8degree
Phase:
2
Rated Voltage:
1.55V
Rate Current:
0.5A
Holding Torque:
25mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angle:
1.8degree
Phase:
2
Rated Voltage:
1.55V
Rate Current:
0.5A
Holding Torque:
25mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

0.5A CASUN Flat Nema 11 Stepper Motor 25mN.m Stepping Motor for SMT Machine with CE



Step motor for pancakes Micro flat stepper motor, 1.8 degree, 0.5 A, 25mN.m



In a range of sizes, the Hybrid Stepper Motor Series provides strong holding torque.



To lessen vibration and achieve a greater step resolution, use with a microstepping driver.



Select a standard version or ask for a specially configured version.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.5Amp

Holding Torque



25 mN.m

Resistance



3.1 om

Inductance



0.95mH

Rotor Inertia



2 g-cm²

Motor weight



40g

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine 1 0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine 2 0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine 3 0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine 4





Please click the "Get  a quote" button below to tell us your requirements.
