Home > products > Special Shaft Stepper Motor > 1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS
1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS
1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS
1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS
1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS
1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS
1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS

1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 20SHD4255-10BS

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $5.94-$8.6

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

NEMA 8 Dual Axis Stepper Motor

,

1.8 Degree Dual Axis Stepper Motor

,

40mN.M Dual Axis Stepper Motor

Step Angel:
1.8°
Holding Torque:
40mN.m
Current:
0.6A
Motor Length:
38.2mm
Shaft:
Milling Flat Shaft 10mm & 10mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
40mN.m
Current:
0.6A
Motor Length:
38.2mm
Shaft:
Milling Flat Shaft 10mm & 10mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.m with ROHS



The NEMA 8 dual axis stepper motor can independently control two axes, that is, simultaneously control the movement of two rotors.

It can achieve more complex motion modes and path planning, improving the flexibility and versatility of the system.



Features:

  • High accuracy and torque

  • Dealers wanted

  • Available in single or double shaft versions

  • We are experts in drivetrain solutions

  • We have been operating in China for 12 years and have served over 800 customers





Motor Specifications

Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.6 A

Holding Torque

40 mN.m

Resistance

12.5 ohm

Inductance

5.5 mH

Rotor Inertia

3.8 g-cm²

Motor weight

0.08 kg

Number of leads

4

Connection

Bipolar

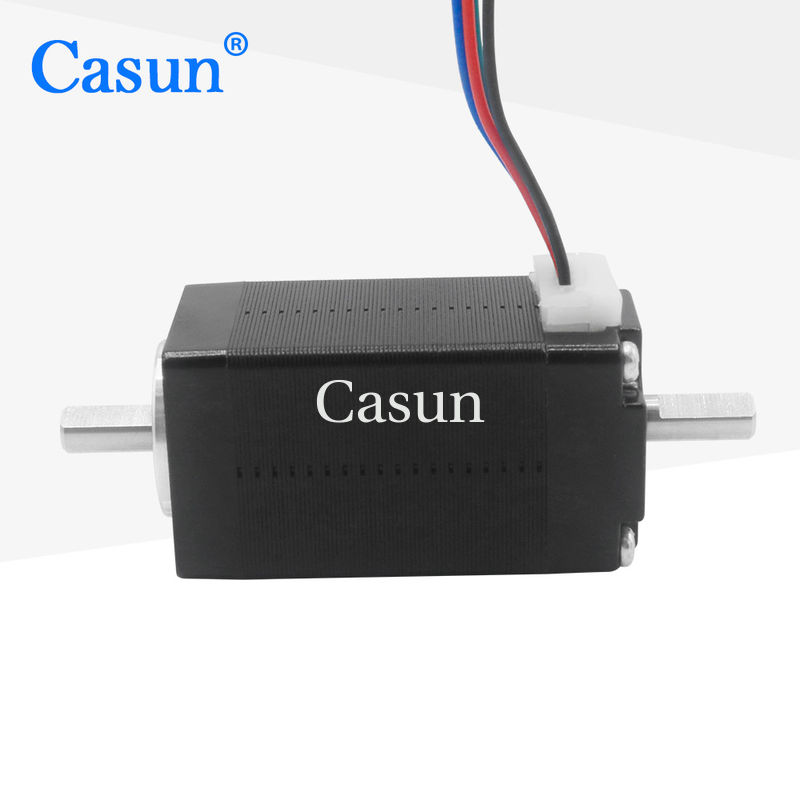

Appearance



1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS 0

Dimensions

1.8 Degree NEMA 8 Dual Axis Stepper Motor 20*20*38mm 40mN.M ROHS 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.












Tags:

NEMA 8 Dual Axis Stepper Motor,

1.8 Degree Dual Axis Stepper Motor,

40mN.M Dual Axis Stepper Motor
