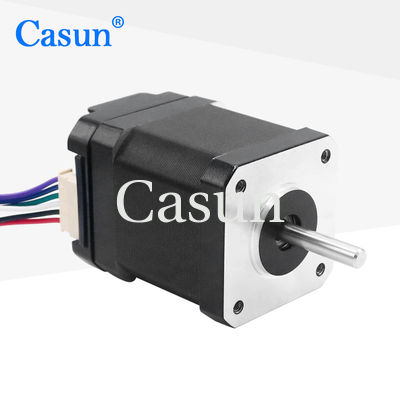

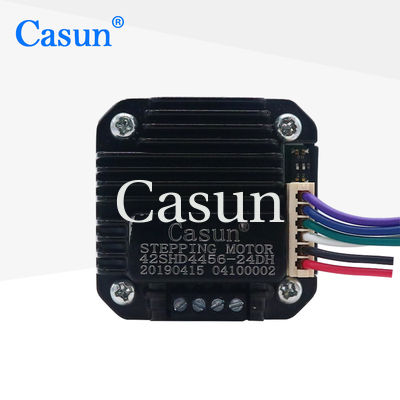

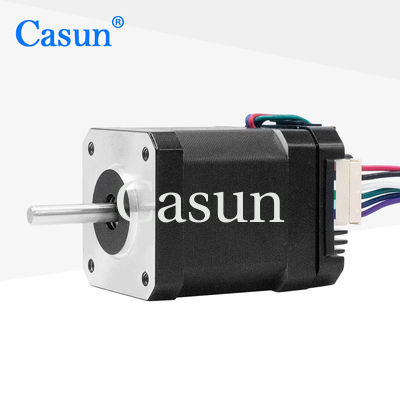

Casun Integrated Stepper Motor 550mN.M Open Loop Integrated Motor For Automation Machine

Casun integrated Stepper motor 550mN.m 3.74V DC Nema 17 Hybrid Stepper Motor 42x42x48mm with factory price

Integrated motor refers to a motor system that incorporates multiple components or functions into a single unit. It typically combines the motor itself with various other elements such as sensors, controllers, and power electronics, creating a compact and self-contained system.


The integration of these components offers several advantages over traditional motor setups, including improved performance, reduced size and weight, simplified installation, and enhanced efficiency. By integrating the motor with other components, the system can be optimized for specific applications, resulting in better overall performance.


Integrated motors are commonly used in various industries and applications, including robotics, automation, automotive systems, medical devices, and industrial machinery. They can be found in applications such as robotic arms, CNC machines, electric vehicles, pumps, fans, and many others.

Features:

• Bipolar or unipolar versions available

• For high-tech industry and electronic industry equipment

• Available in single or double shaft versions

• Provide "multiple international certifications"

• Professional research and development manufacturing

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
