Home > products > Special Shaft Stepper Motor > 3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment

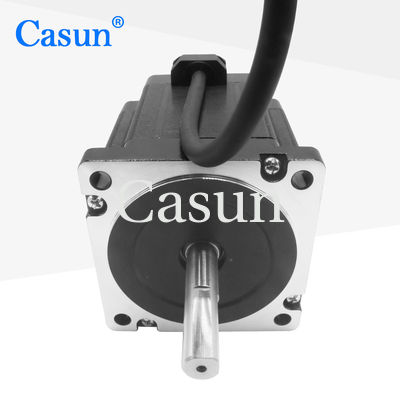

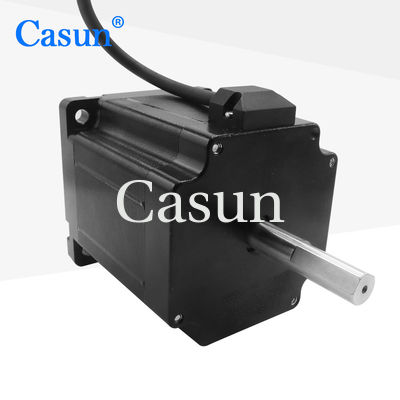

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 868698mm 5N.M For Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 86SHD4109-37S

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description

Product Details

High Light:
                                                                                                                                                                                                                                                Dual Shaft Stepper Motor Nema 34, 1.2 Degree Dual Shaft Stepper Motor, 5N.M Dual Shaft Stepper Motor


Step Angel:	1.2°	Holding Torque:	5.0N.m
Current:	6.3A	Motor Length:	98mm
Motor Weight:	2.9kg	Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Step Angel:	1.2°
Holding Torque:	5.0N.m
Current:	6.3A
Motor Length:	98mm
Motor Weight:	2.9kg
Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Product Description

3 Phase 1.2 Degree Nema 34 Micro 86*86*98mm Dual Shaft Stepper Motor 5N.M For Machine Equipment

A dual axis stepper motor can independently control the motion of each axis, providing higher flexibility and multi axis collaborative control capability.

Applied to machine tool equipment, 3D printers, automation equipment, laser cutting machines.

Features:

We are experts in drivetrain solutions
Professional drivetrain solution specialist
High torque and precision
For high-tech industry and electronic industry equipment
Ten-year warranty for confident purchases

Motor Specifications

Step Angel	1.2 °
Fram Size	86 mm
Number of Phase	3 Phase
Rated Current	6.3 A
Holding Torque	5.0 N.m
Resistance	0.78 ohm
Inductance	4.6 mH
Rotor Inertia	1700 g-cm²
Motor weight	2.9 kg
Number of leads	4
Connection	Bipolar

Appearance

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment 0

Dimensions

3 Phase 1.2 Degree Dual Shaft Stepper Motor Nema 34 Micro 86*86*98mm 5N.M For Equipment 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
