NEMA 14 Multilayer Bipolar Stepper Motor 150m.N For Industry Robot

name

NEMA 14 Multilayer Bipolar Stepper Motor 150m.N For Industry Robot

Brand Name: Casun
Model Number: E39D40044004-05
MOQ: 1PC
Price: $18-$23
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
150mN.m
Current:
0.8A
Motor Length:
35mm
Shaft:
Round Shaft 9.2mm Length
Voltage:
8v
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Multilayer Bipolar Stepper Motor

,

Bipolar Stepper Motor For Industry Robot

,

Bipolar Stepper Motor 150m.N

Product Description

Multisport Motor NEMA 14 Multilayer Stepper Motor 150m.N For Industry Robot

nema14 hybrid stepper motor 39x39x35mm 150mN.m Multisport motor

The Nema14 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 39 x 39mm
Rated current: 0.8A
Holding torque: 150mN.m
Weight: 0.22kg (4.2 oz)

This is a motor independently developed and patented by our company.

E39 series multi-motion stepping motor is a new type of patented stepping motor (patent number: ZL2013 2 0370752.8).
Non-interfering, precise structure, shaft runout less than 0.025, suitable for industrial robots, stage lights and other automation control fields.



Motor Specifications



Step Angel



1.8 °

Fram Size



39mm

Number of Phase



2 Phase

Rated Current



0.4A

Holding Torque



150mN.m

Resistance



30ohm

Inductance



45mH

Rotor Inertia



20 g-cm²

Motor weight



0.12kg

Number of leads



4

Connection



Bipolar

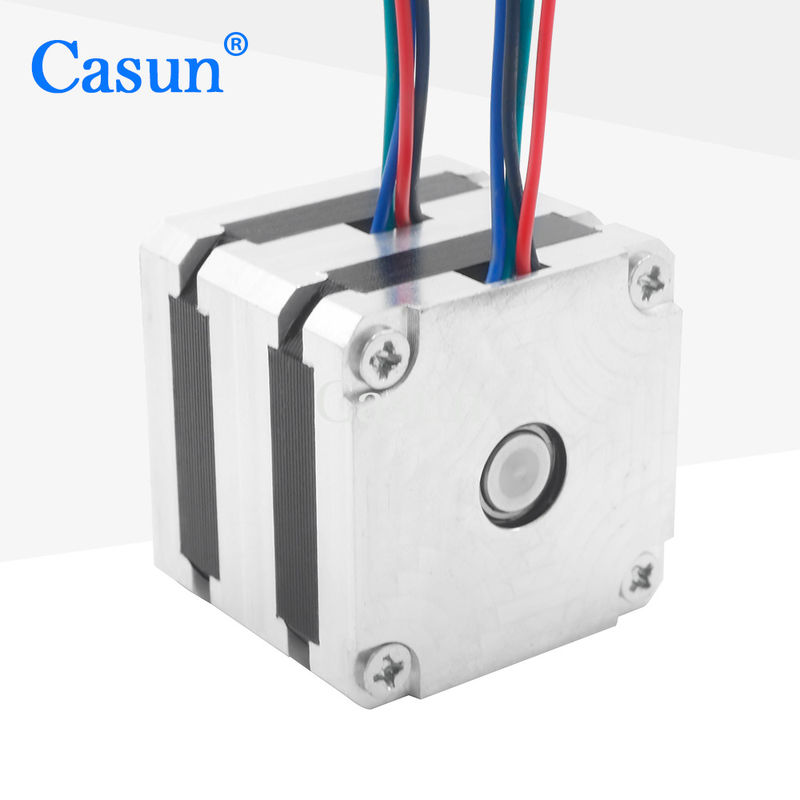

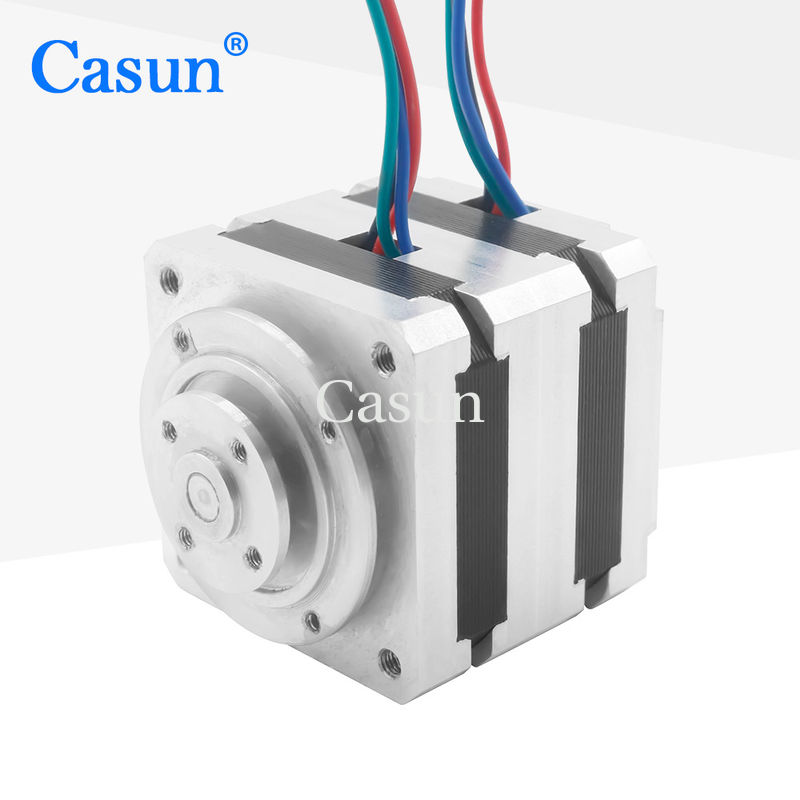

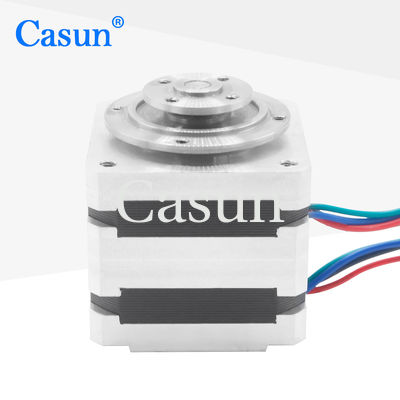

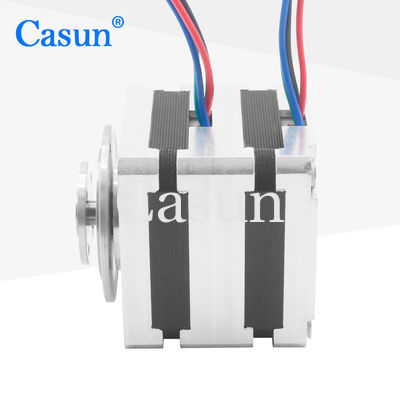

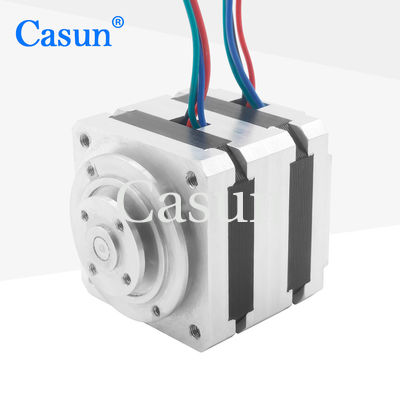

Appearance

NEMA 14 Multilayer Bipolar Stepper Motor 150m.N For Industry Robot 0

Dimensions

NEMA 14 Multilayer Bipolar Stepper Motor 150m.N For Industry Robot 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs



Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
