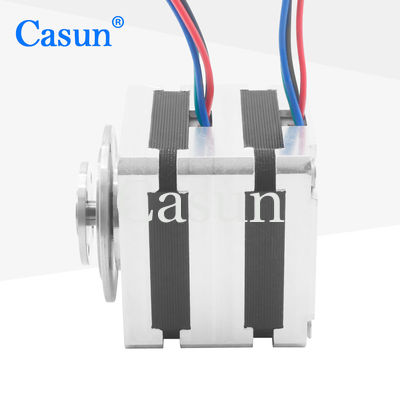

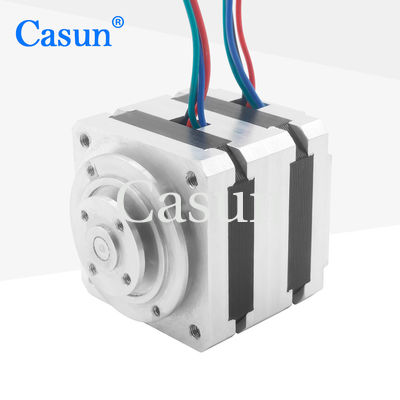

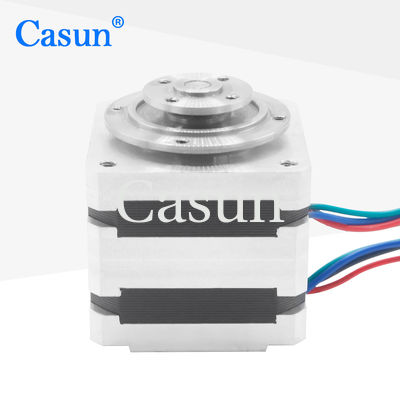

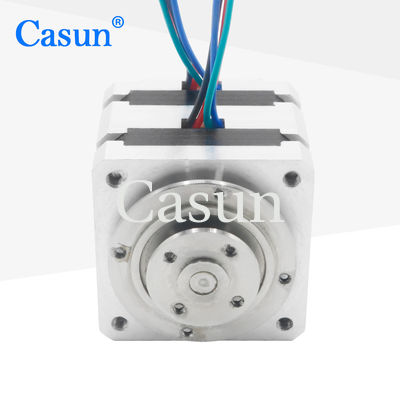

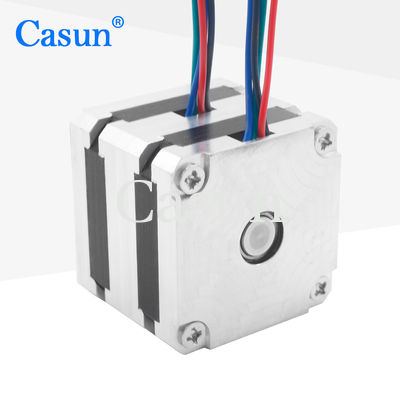

Sliver Color Nema 16 stepper Motor 150mN.M 8 V Multilayer For Medical Device

Sliver Color Nema 16 stepper Motor 150mN.M 8 V Multilayer For Medical Device

Brand Name:	Casun
Model Number:	E39D40044004-05
MOQ:	1PC
Price:	$18-$23
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	100000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Voltage:

Shaft:

Round Shaft 9.2mm Length

Holding Torque:

150mN.m

Current:

0.8A

Motor Length:

35mm

Phase:

Resistance:

10ohm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Sliver Color Nema 16 Stepper Motor

Nema 16 Stepper Motor Multilayer

Product Description

Sliver Color Nema 16 Stepper Motor 150mN.M 8V Multilayer For Medical Device

Product Overview

Stufe Stufe New Types Sliver Color Nema 16 150mN.M 8V Multilayer Motor For Medical Device. This multisport motor NEMA16 hybrid stepper measures 39x39x35mm with 150mN.m torque.

Key features include:

Step angle: 1.8 degrees per step
Motor size: 39 x 39 mm
Current rating: 0.8A
Holding torque: 150 mN.m
Weight: 0.22 kilograms (4.2 oz)

Innovative Design

This is a motor independently developed and patented by our company. The E39 series multi-motion stepping motor is a new type of patented stepping motor (patent number: ZL2013 2 0370752.8).

Features non-interfering, precise structure with shaft runout less than 0.025, making it suitable for industrial robots, stage lights, and other automation control fields.

Motor Specifications

Step Angle	1.8°
Frame Size	39mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	150mN.m
Resistance	30ohm
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor Weight	0.12kg
Number of Leads	4
Connection	Bipolar

Visual Documentation

Appearance

Dimensions

Torque Curves

Torque curve documentation available upon request.

Download

Technical documentation and specifications available for download.

Customization Available

If our standard motor cannot meet your needs, we can customize the motor according to your specific requirements.

Available Options:

Encoder

Brake

Gearbox

Connector

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
