Multilayer Nema 16 Stepper Motor Black Color For Medical Device ROHS ISO Certifications

Multilayer Nema 16 Stepper Motor Black Color For Medical Device ROHS ISO Certifications

Brand Name:	CASUN
Model Number:	E39C-05
MOQ:	1pcs-10pcs
Price:	US $11.00 - 14.00/ Piece
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angle:

1.8degree

Phase:

Rated Voltage:

10.4V

Rate Current:

0.4A

Holding Torque:

200mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Multilayer Nema 16 Stepper Motor

Black Nema 16 Stepper Motor

Product Description

Multilayer Nema 16 Stepper Motor - Black Color for Medical Devices

CASUN R&D Multilayer Nema 16 Stepper Motor in black color, specifically designed for medical devices. Certified with CE, ROHS, and ISO standards. Motor dimensions: 39×44.6mm, 0.4A Bipolar configuration.

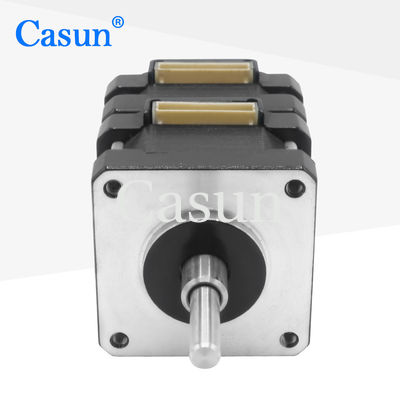

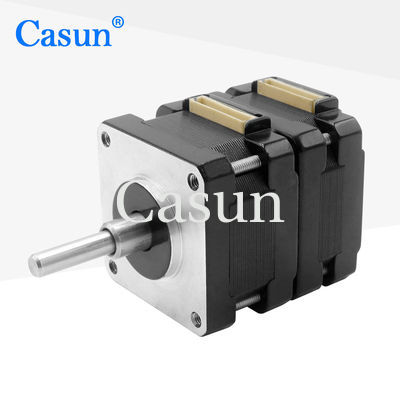

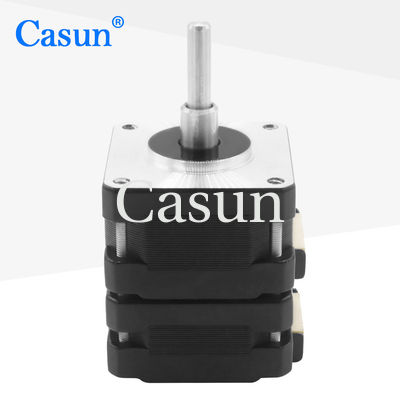

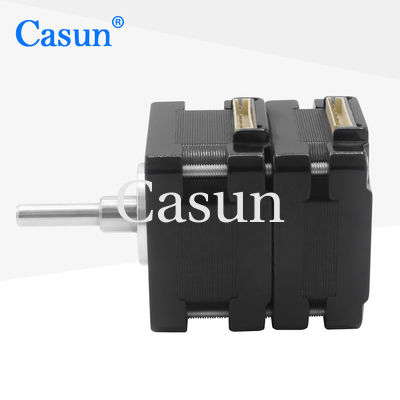

Product Appearance

Motor Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	44.5 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	200 mN.m
Resistance	26 ohm
Inductance	22 mH
Number of Leads	4
Connection	Bipolar

Available Options

Encoder

Brake

Gearbox

Connector

Customization Services

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customization options include but are not limited to:

Special shafts and shaft configurations
Custom winding parameters
Modified installation dimensions
Specialized lead wires and connectors
