products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Multilayer Motor
Created with Pixso.

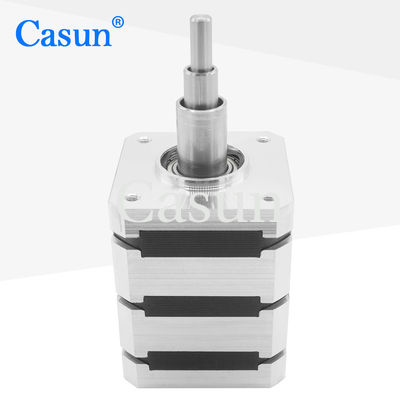

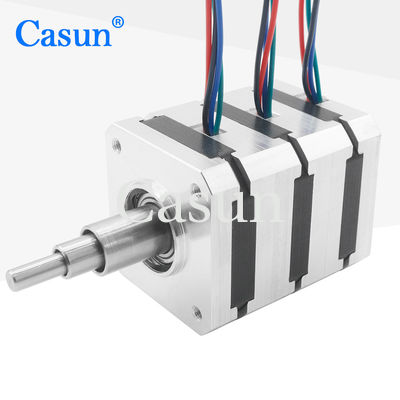

0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment

name

0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment

Brand Name: Casun
Model Number: E42S-01-122440-300
MOQ: 1PC
Price: $18-$23
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
200mN.m
Current:
0.4A
Motor Length:
57.5mm
Shaft:
12/24/40mm Length
Voltage:
12v
Tape:
Multilayer
Color:
Black
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

0.4A Bipolar Stepper Motor

,

Bipolar Stepper Motor For Automation Equipment

Product Description

nema17 hybrid stepper motor 42x42x57.5mm 200mN.m Multisport motor

The Nema17 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 42 x 42mm
Rated current: 0.4A
Holding torque: 2000mN.m
Weight: 0.3kg

Movement method:
1. The output shaft A can rotate (controlled by port 2);
2. The output shaft B can rotate (controlled by port 1).
Note: The above two motion modes are controlled by different ports.
Each motion mode can run independently at the same time without interfering with each other.



Motor Specifications



Step Angel



1.8 °

Fram Size



42mm

Number of Phase



2 Phase

Rated Current



0.4A

Holding Torque



200mN.m

Resistance



30ohm

Inductance



45mH

Rotor Inertia



20 g-cm²

Motor weight



0.3kg

Number of leads



4

Connection



Bipolar





Appearance

0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment 0

Dimensions

0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs



Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.











Tags:

Double Layer Linear Stepper Motor

NEMA 17 Linear Stepper Motor

Linear Stepper Motor Precision Positioning
