Multilayer Nema 16 Stepper Motor 39*40mm 12V For Medical Device CE Certifications

name

Multilayer Nema 16 Stepper Motor 39*40mm 12V For Medical Device CE Certifications

Brand Name: CASUN
Model Number: E39C-33
MOQ: 1pcs-10pcs
Price: US $11.00 - 14.00/ Piece
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angle:
1.8degree
Phase:
2
Rated Voltage:
12V
Rate Current:
0.48A
Holding Torque:
200mN.m
Brand:
CASUN
Type:
Multilayer Stepper Motor
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

Multilayer Nema 16 Stepper Motor

,

12V Nema 16 Stepper Motor

Product Description
Multilayer Nema 16 Stepper Motor 39×40mm 12V For Medical Device CE Certifications
Product Overview

CASUN R&D Multilayer Nema 16 Stepper Motor 39×40mm designed specifically for medical devices with CE certifications. This 0.48A bipolar stepper motor features two-phase operation at twelve volts, delivering reliable performance for medical equipment applications.

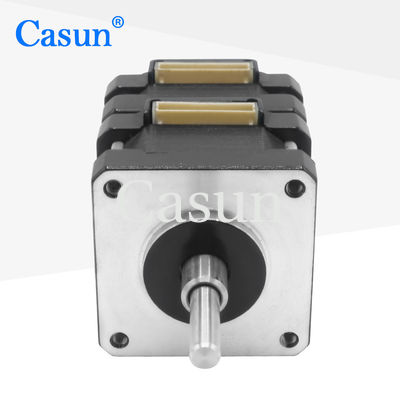

Product Appearance
Multilayer Nema 16 Stepper Motor 39*40mm 12V For Medical Device CE Certifications 0

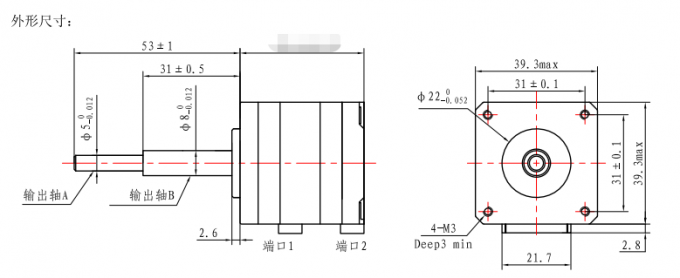

Dimensions
Detailed dimensional drawing of Nema 16 stepper motor showing 39×39×40mm specifications
Motor Specifications
Step Angle 1.8°
Frame Size 40 mm
Number of Phase 2 Phase
Rated Current 0.48 A
Holding Torque 200 mN.m
Resistance 22 ohm
Inductance 25 mH
Number of Leads 4
Connection Bipolar
Available Options
Encoder
Brake
Gearbox
Connector
Customization Services

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to:

  • Special shafts and shaft modifications
  • Custom winding parameters
  • Specific installation dimensions
  • Lead wires with special requirements
  • Custom connectors and terminations
Company Information
  • Location: Based in Guangdong, China
  • Established: 2011
  • Market Reach: Domestic Market (63%), Western Europe (12%), North America (9%), Eastern Asia (8%), Northern Europe (2%)
  • Team Size: 51-100 professionals
Quality Assurance
  • Pre-production samples before mass production
  • Final inspection before shipment
Product Range

We specialize in manufacturing and supplying:

  • Stepper Motors
  • BLDC Motors
Why Choose CASUN?

With over 11 years of specialized experience in stepper motor production and sales, we deliver proven reliability and expertise.

Service Details
  • Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
  • Payment Currency: USD, CNY
  • Payment Methods: T/T, L/C, D/P D/A, PayPal
  • Languages: English, Chinese, Japanese
