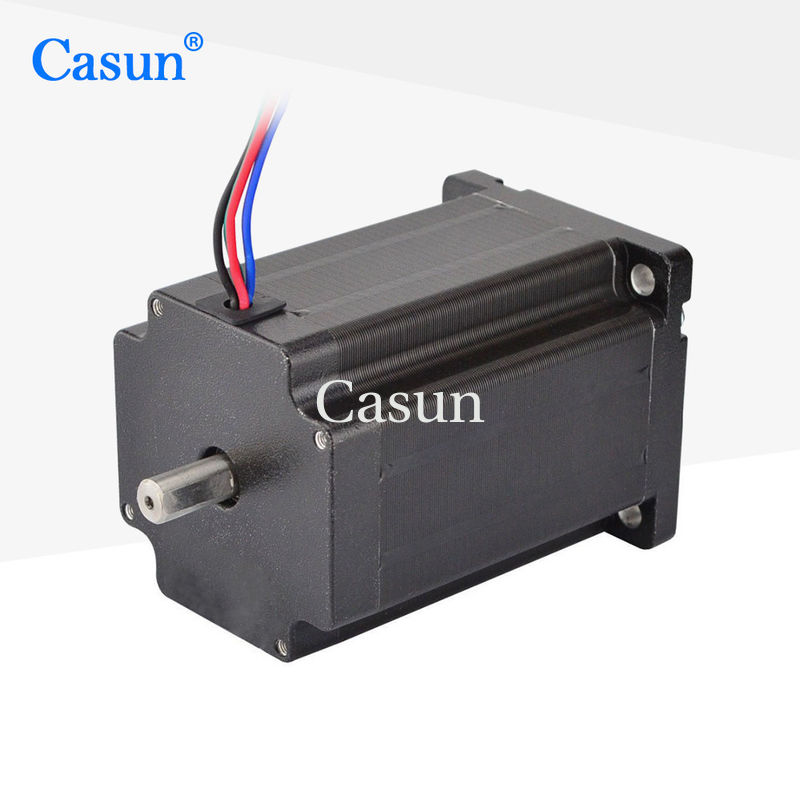

Black NEMA 24 Step Motor 4100mN.M Double Shaft Stepper Motor

Black NEMA 24 Step Motor 4100mN.M Double Shaft Stepper Motor

Brand Name:	Casun
Model Number:	60SHD4701-24S
MOQ:	1PC
Price:	$18.00-$25
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current / Phase:

3.5A

Holding Torque:

4100mN.m

Step Angle:

1.8°

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29x18cm

Highlight:

Black NEMA 24 Step Motor

4100mN.M NEMA 24 Step Motor

Double Shaft Stepper Motor

Product Description

NEMA24 Step Motor 4100mN.M Double Shaft Stepper Motor With High Quality

Double Shaft Stepper motor NEMA 24 4100mN.m 60x60x100mm hybrid step motor for Automation machine.

Size: The NEMA 24 standard specifies the mounting dimensions for stepper motors. In this case, the motor has a frame size of 60x60mm and a length of 100mm.

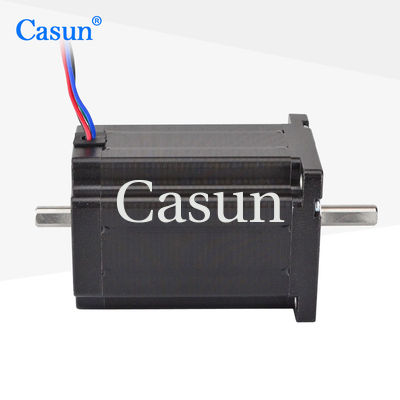

Double Shaft: The motor has two output shafts, allowing you to connect and drive two separate mechanisms or loads simultaneously. This can be useful in applications where multiple components need to be driven independently.

Applications: NEMA 24 double shaft stepper motors are commonly used in various automation applications, such as CNC machines, 3D printers, robotic arms, and automated manufacturing equipment. Their high torque output makes them suitable for driving mechanisms that require precise positioning and control.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	60mm
Number of Phase	2 Phase
Rated Current	3.5Amp
Holding Torque	4100mN.m
Resistance	-hm
Inductance	-mH
Rotor Inertia	-g-cm²
Motor weight	1.5kg

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.

Options:
Encoder | Brake | Gearbox | Shaft

Black NEMA 24 Step Motor 4100mN.M Double Shaft Stepper Motor 1

Please click the "Get a quote" button below to tell us your requirements.
