2 Phase 20*38mm Nema 8 0.8A Bipolar Stepper Motor Customization For Mini Rotating Light

2 Phase 20*38mm Nema 8 0.8A Bipolar Stepper Motor Customization For Mini Rotating Light

Brand Name:	Casun
Model Number:	20SHD0259-15B2
MOQ:	1pcs-10pcs
Price:	US $6.14.00 - 10.00/ Piece
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angle:

1.8degree

Phase:

Rated Voltage:

4.8V

Rate Current:

0.8A

Holding Torque:

40mN.m

Weight:

0.08kg

Application:

Mini Rotating Light

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

0.8A Bipolar Stepper Motor

Nema 8 Bipolar Stepper Motor

2 Phase Bipolar Stepper Motor

Product Description

2 Phase 20×38mm Nema 8 0.8A Bipolar Stepper Motor Customization For Mini Rotating Light

This precision 2-phase Nema 8 stepper motor features a compact 20×38mm design with 0.8A rated current, specifically engineered for mini rotating light applications. Available in black color with CE certification.

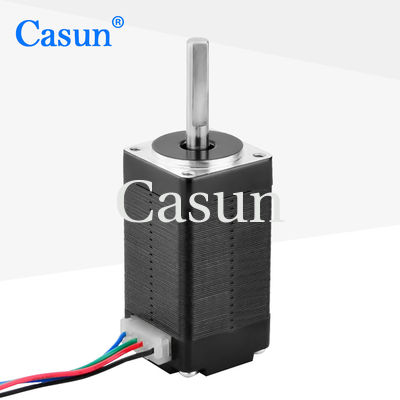

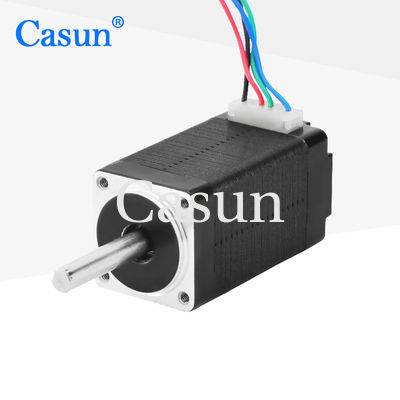

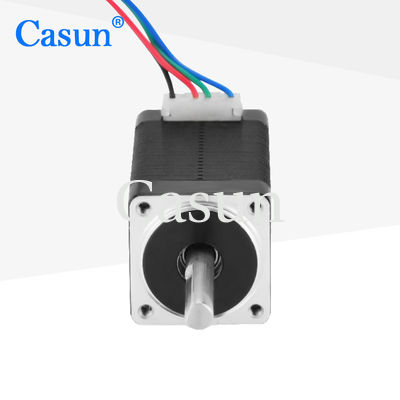

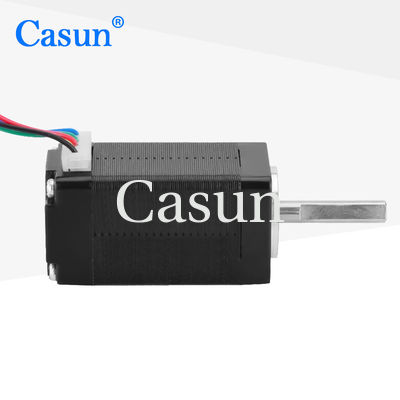

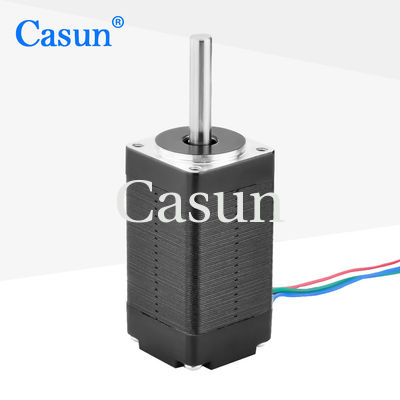

Appearance

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	40 mN.m
Resistance	6 ohm
Inductance	2.7 mH
Rotor Inertia	3.8 g-cm²
Motor Weight	0.08 kg
Number of Leads	4
Connection	Bipolar

Torque Curves

Detailed torque performance curves available upon request.

Download

Technical documentation and specifications available for download.

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Special shafts and mounting dimensions
Custom winding parameters
Specialized lead wires and connectors
And other custom requirements

Frequently Asked Questions

Who are we?

Based in Guangdong, China, established in 2011. We serve domestic and international markets including Western Europe, North America, and Eastern Asia. Our team consists of 51-100 professionals.

How can we guarantee quality?

Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.

What can you buy from us?

Stepper Motors and BLDC Motors.

Why should you buy from us?

Over 11 years of specialized experience in stepper motor production and sales.

What services can we provide?

Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Payment: USD, CNY via T/T, L/C, D/P D/A, PayPal
Languages: English, Chinese, Japanese

Available Options

Encoder

Brake

Gearbox

Connector
