products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Geared Stepper Motor
Created with Pixso.

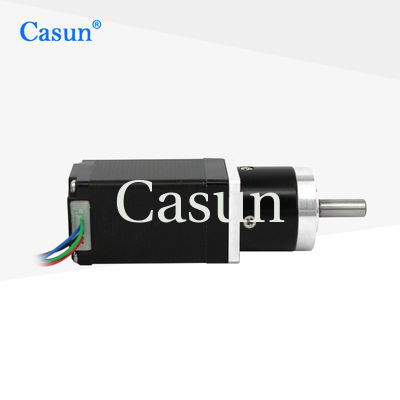

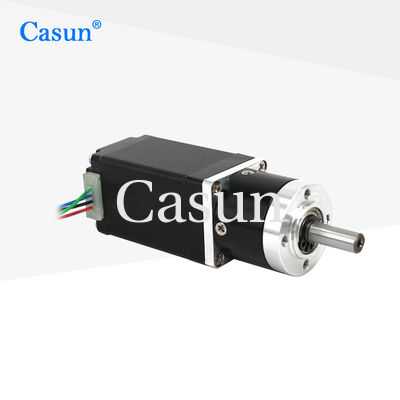

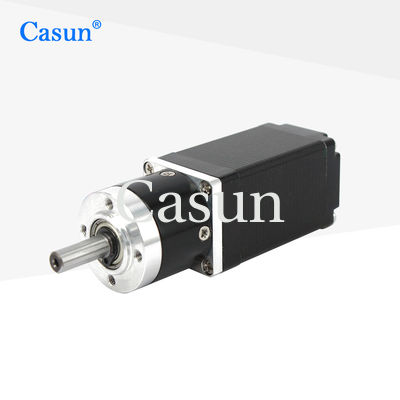

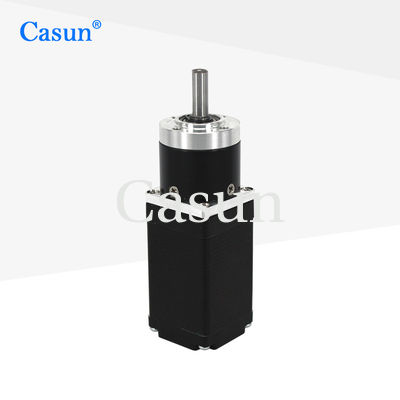

0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument

name

0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument

Brand Name: Casun
Model Number: 28SHD4111-5G
MOQ: 1PC
Price: $16-$25
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Stepper Motor:
NEMA11
Phase:
2
Holding Torque:
55mN.m
Rated Voltage:
6.12V
Rate Current:
0.67A
Weight:
0.2kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Nema 11 Gearbox Stepper Motor

,

Gearbox Stepper Motor 55mN.M

Product Description
0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument

Casun 0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M Stepping Motors For Coordinate Measuring Instrument. This 28×28×27.5mm geared stepper motor with planetary gearbox offers powerful holding torque in a compact size. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations on request
Dimensions
0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument 0
Motor Specifications
Step Angle 1.8°
Frame Size 28 mm
Number of Phase 2 Phase
Rated Current 0.67 A
Holding Torque 55 mN.m
Resistance 9.2 Ohm
Inductance 5.7 mH
Rotor Inertia 9.2 g·cm²
Motor Weight 0.2 kg
Gear Reduction Ratio 5.18:1
Connection Bipolar
Operating Specifications
Motor
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Gear Box
Housing Material Metal
Bearing at Output Ball Bearings
Max. Radial Load (12mm from flange) ≤80N
Max. Shaft Axial Load ≤30N
Radial Play of Shaft (near to Flange) ≤0.06mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load 1.5°
Submodels
Motor Length Length of Gearbox Ratio Efficiency
34 mm 27.2 mm 3.71 90%
40 mm 5.18 35 mm
48 mm 13.76
60 mm 19.2
26.8 42.7 mm 51 70%
71 99.5
139
Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options
0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument 1
Encoder
0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument 2
Brake
0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument 3
Gearbox
0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument 4
Shaft

Please click the "Get a quote" button below to tell us your requirements.
