Home > products > DC Brushless Motor > Nema 23 Dc Brushless Motor 6000rpm 0.3N.M 63w DC Electric Motors

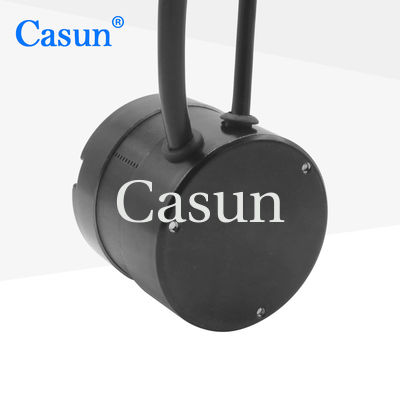

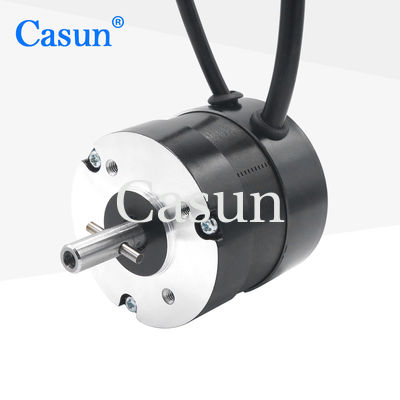

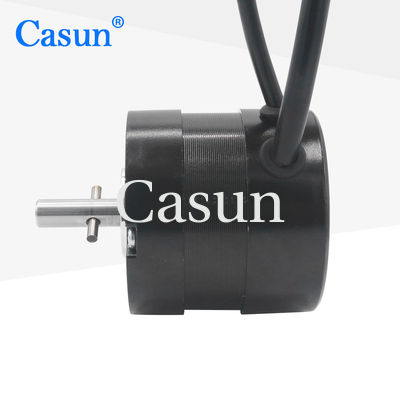

Nema 23 Dc Brushless Motor 6000rpm 0.3N.M 63w DC Electric Motors
Nema 23 Dc Brushless Motor 6000rpm 0.3N.M 63w DC Electric Motors
Nema 23 Dc Brushless Motor 6000rpm 0.3N.M 63w DC Electric Motors
Nema 23 Dc Brushless Motor 6000rpm 0.3N.M 63w DC Electric Motors

Nema 23 Dc Brushless Motor 6000rpm 0.3N.M 63w DC Electric Motors

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 57BL52R63-2460-25P

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $18-$28

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Nema 23 Dc Brushless Motor

,

6000rpm Dc Brushless Motor

Speed(rpm):
6000RPM
Torque:
0.3N.m
Voltage(v):
24V
Rated Power:
63W
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Speed(rpm):
6000RPM
Torque:
0.3N.m
Voltage(v):
24V
Rated Power:
63W
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Brushless Motor Nema23 6000rpm 0.3N.M 63w DC Electric Motors

Type: BLDC (Brushless DC)

BLDC motors are electric motors that use a permanent magnet rotor and electronically commutated stator winding to generate motion. They offer advantages such as higher efficiency, longer lifespan, and better controllability compared to brushed DC motors.
NEMA23: NEMA (National Electrical Manufacturers Association) is a standard rating for motor frame sizes. NEMA23 refers to a specific motor size with a faceplate dimension of approximately 2.3 inches by 2.3 inches.

Max Speed: 6000 rpm (revolutions per minute)

This indicates the maximum rotational speed the motor can achieve under ideal conditions. It suggests that the motor can rotate at a maximum speed of 6000 revolutions per minute.
DC Voltage: 24V

This specifies the operating voltage required for the motor. In this case, the motor is designed to operate on a DC power supply of 24 volts.
Power Rating: 500W (watts)

This indicates the power rating or electrical output of the motor. It suggests that the motor can deliver a maximum power of 500 watts.
Max Torque: 0.3 N.m (Newton meters)

This represents the maximum torque output of the motor, which is a measure of rotational force. In this case, the motor can generate a maximum torque of 0.3 Newton meters.



Features:

Dimensions

Nema 23 Dc Brushless Motor 6000rpm 0.3N.M 63w DC Electric Motors 0







Motor Specifications



Fram Size



57 mm

Rated Current



9 A

MaTorque



0.3N.m

Resistance



6000rpm

Inductance



6500rpm

Rate Power



63 W

Rate Voltage



24 V

Number of poles



4

Insulation Class



Class B

























Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs





Please click the "Get  a quote" button below to tell us your requirements.
