GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > 1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting

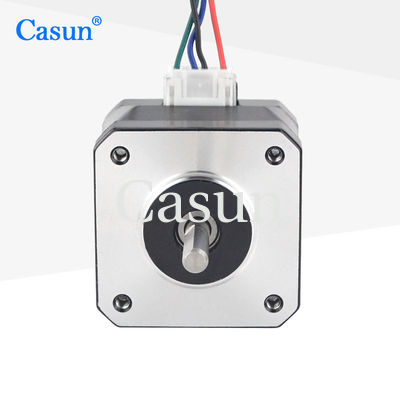

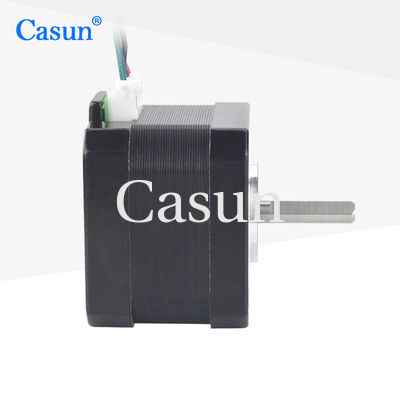

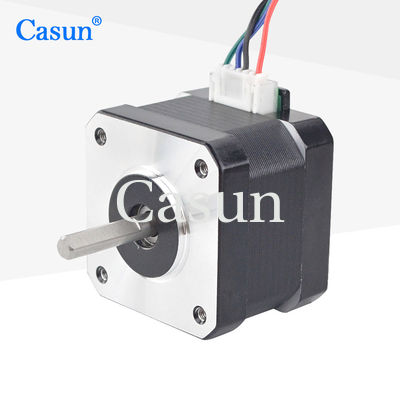

1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting
1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting
1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting
1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting
1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting
1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting

1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0003-24BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

2 Phase Hybrid Step Motor

,

0.28N.M Hybrid Step Motor

,

Hybrid Step Motor For Stage Lighting

Step Angel:
1.8°
Holding Torque:
280mN.m
Current:
0.4A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Rated Voltage:
12V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
280mN.m
Current:
0.4A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Rated Voltage:
12V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

In the field of robotics, 42mm stepper motors are often used to control joint motion.



Features:

  • High torque and high precision

  • High-tech industry and electronic industry equipment necessitate multiple international certifications

  • Available in single or double shaft versions

  • We are open to contract manufacturing arrangements

  • We actively pursue dealers!





Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

280 mN.m

Resistance

30 ohm

Inductance

37 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Appearance

1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting 0

Dimensions

1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting 2 1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting 3 1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting 4 1.8 Degree 2 Phase NEMA 17 Hybrid Step Motor 12V 0.28N.M For Stage Lighting 5



Please click the "Get a quote" button below to tell us your requirements.
