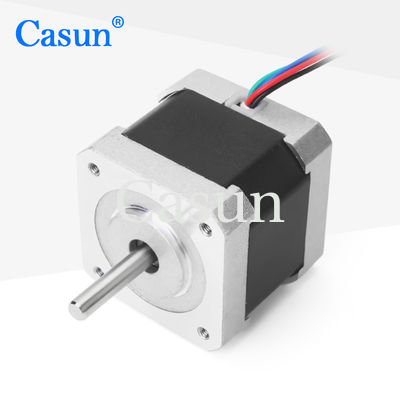

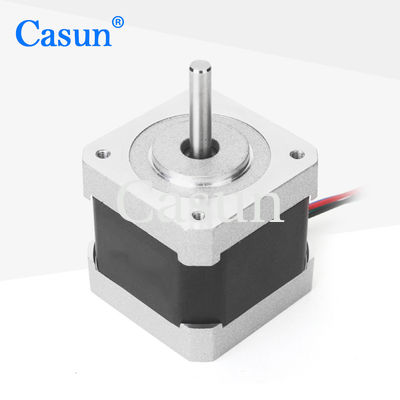

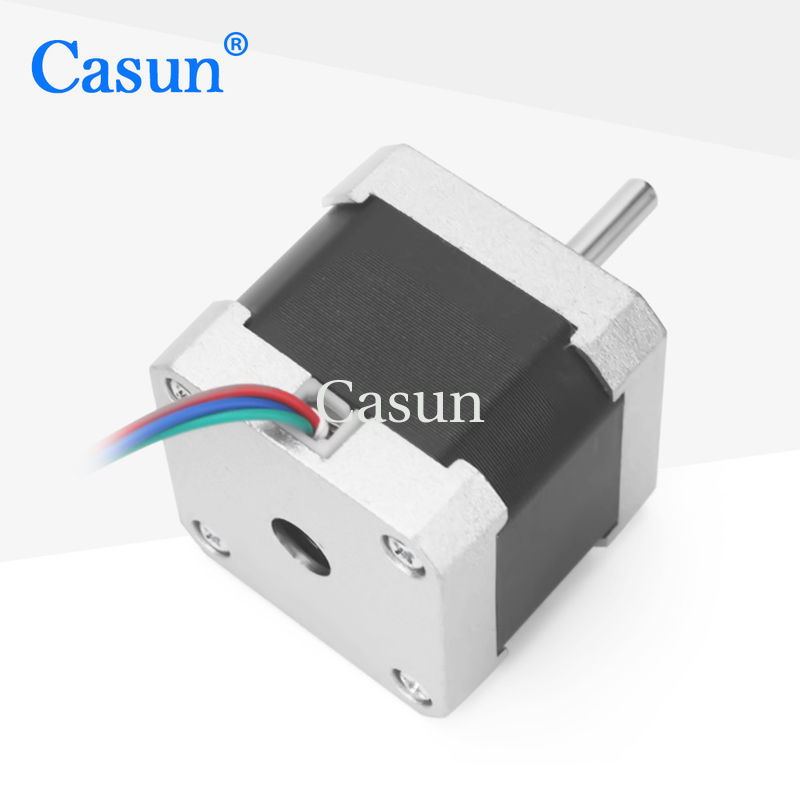

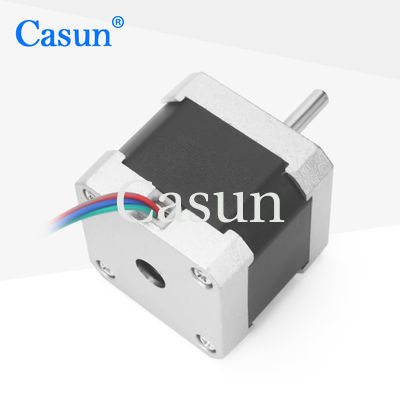

NEMA 17 Hybrid Step Motor 42x42x48mm 1.68A 300mN.M Arduino Stepper Motor Bipolar For 3D Printer

NEMA 17 Hybrid Step Motor 42x42x48mm 1.68A 300mN.M Arduino Stepper Motor Bipolar For 3D Printer

Brand Name:	Casun
Model Number:	42SHB0504-24B
MOQ:	1PC
Price:	$5.9-$9.99
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

0.9 Degree

Holding Torque:

300mN.m

Current:

1.5A

Motor Length:

40mm

Shaft:

24mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

NEMA 17 Hybrid Step Motor

Hybrid Step Motor For 3D Printer

Product Description

NEMA 17 Hybrid Step Motor 42x42x48mm 1.68A 300mN.M Arduino Stepper Motor Bipolar For 3D Printer

Product Overview

Casun Hybrid Stepper Motor NEMA 17 42x42x40mm 1.68A 300mN.m Bipolar Stepper Motor designed specifically for 3D printers and CNC equipment.

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Accept contract manufacturing
Available in single or double shaft versions
Established in China for 12 years and has served more than 800 customers
Professional research and development manufacturing

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	300 mN.m
Resistance	1.65 ohm
Inductance	37 mH
Rotor Inertia	72 g-cm²
Motor Weight	0.38 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Get a quote
