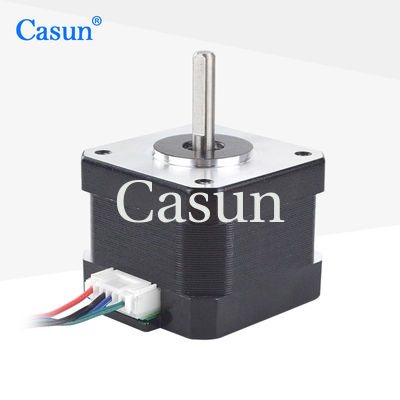

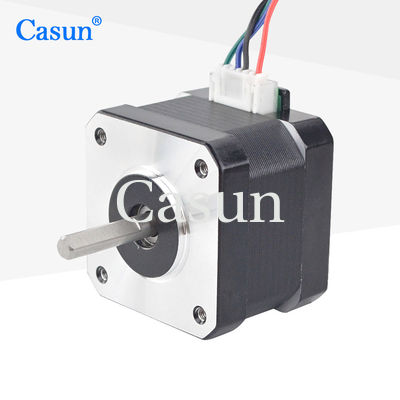

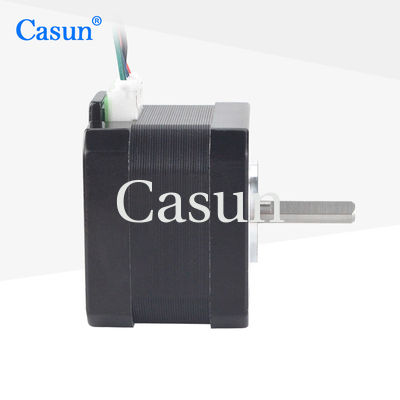

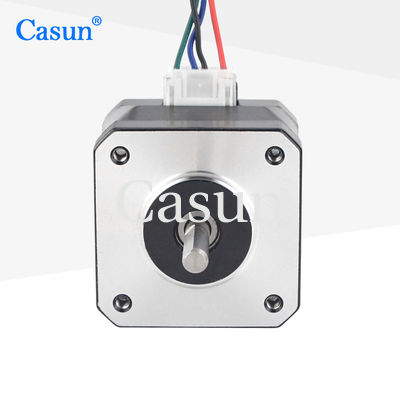

42*42*34mm Stepper Motor Nema 17 1.2A For Medical Equipment With CE

42*42*34mm Stepper Motor Nema 17 1.2A For Medical Equipment With CE

Stepper Motor Nema 17 1.2A

Stepper Motor Nema 17 CE

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

42SHD0063-20BH

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
210mN.m
Current:
1.2A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 20mm Length
Rated Voltage:
3.24V
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

42*42*34mm Motor Stepper Motors Nema 17 For Medical Equipment With CE



Widely used in medical equipment, such as medical robots, surgical instruments, medical injection pumps, etc.

NEMA 17 stepper motors typically come in various specifications and models to meet different engineering needs.



Features:

  • High torque and high precision

  • Contract manufacturing accepted

  • Specializing in drivetrain solutions

  • Having operated in China for 12 years, we have catered to over 800 customers

  • Seeking dealers! !





Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

210 mN.m

Resistance

2.7 ohm

Inductance

2.1 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Appearance

42*42*34mm Stepper Motor Nema 17 1.2A For Medical Equipment With CE 0

Dimensions

42*42*34mm Stepper Motor Nema 17 1.2A For Medical Equipment With CE 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

42*42*34mm Stepper Motor Nema 17 1.2A For Medical Equipment With CE 2 42*42*34mm Stepper Motor Nema 17 1.2A For Medical Equipment With CE 3 42*42*34mm Stepper Motor Nema 17 1.2A For Medical Equipment With CE 4 42*42*34mm Stepper Motor Nema 17 1.2A For Medical Equipment With CE 5
