17HS13-0404S Hybrid Stepper Motor 1.8 Degree Nema 17 0.4A With CE ISO9001

17HS13-0404S Hybrid Stepper Motor 1.8 Degree Nema 17 0.4A With CE ISO9001

Brand Name:	Casun
Model Number:	42SHD4003-20BH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

260mN.m

Current:

0.4A

Motor Length:

34mm

Shaft:

Milling Flat Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

17HS13-0404S Hybrid Stepper Motor

0.4A Hybrid Stepper Motor

1.8 Degree Hybrid Stepper Motor

Product Description

17HS13-0404S Hybrid Stepper Motor 1.8 Degree Nema 17 0.4A With CE ISO9001

Product Overview

The 17HS13-0404S1 stepper motor is a 42mm digital motor that can be controlled with precise stepper angles through a controller. No external sensors are required for position feedback, simplifying system design and reducing costs.

Bipolar or unipolar versions available
12 years of manufacturing experience serving over 800 customers
Ten-year warranty for confident purchases
CE and RoHS approved
Seeking dealers!

Visual Documentation

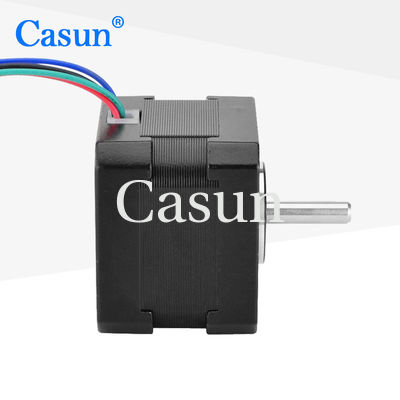

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	260 mN.m
Resistance	30 ohm
Inductance	37 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.28 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Related Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Get a quote
