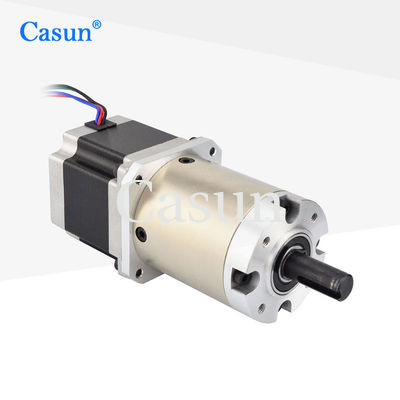

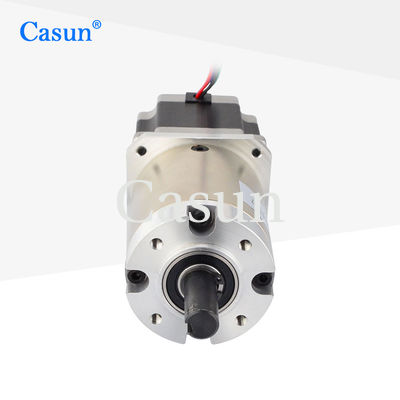

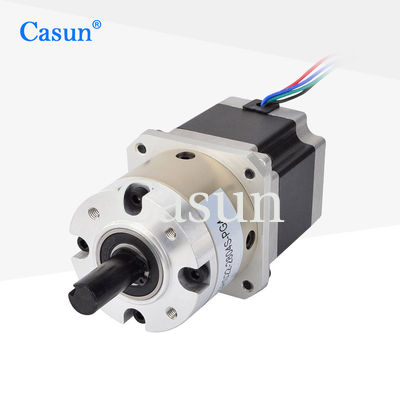

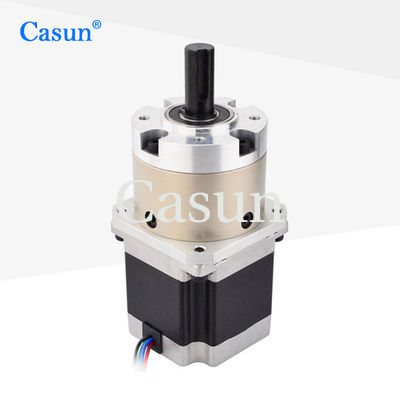

23HS22-280 NEMA 23 Planetary Geared Stepper Motor For Medical Appliance Robotic Arm

23HS22-280 NEMA 23 Planetary Geared Stepper Motor For Medical Appliance Robotic Arm

Planetary Geared Stepper Motor

NEMA 23 Planetary Geared Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROSH,ISO

Model Number:

57SHD4425-46G

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$22.49-$27
Packaging Details
Carton:38x29x18cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

23HS22-280 NEMA 23 Planetary Geared Stepper Motor For CNC Medical Appliance Robotic Arm



The NEMA 23 reduction motor reduces speed and increases torque through a reduction mechanism, which can output greater torque at low speeds and is suitable for situations where high torque is required.

Widely used in fields such as machine tool equipment, automated production lines, 3D printers, etc.



Features:

  • Versions in unipolar or bipolar are offered.

  • Deliver "multiple international certifications" for electrical and high-tech devices.

  • Available in single or double shaft versions

  • We accept contract manufacturing and provide specialised services. Needed dealers!

  • Customizations on request

Dimensions

23HS22-280 NEMA 23 Planetary Geared Stepper Motor For Medical Appliance Robotic Arm 0







Motor Specifications



Step Angel



1.8 °

Fram Size



57 mm

Number of Phase



2 Phase

Rated Current



2.8 A

Holding Torque



1250mN.m

Resistance



0.9 hm

Inductance



2.5 mH

Rotor Inertia



260 g-cm²

Motor weight



1.1 kg

Gear Reduction Ratio



46.66:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤250N

Max.Shaft Axial Load:≤100N

Radial Play of Shaft (near to Flange):≤0.08m

Axial Play of Shaft:≤0.4mm

Backlash at No-load:≤2.5°













Torque Curves









Submodels

Motor Length Length of Gearbox Raio Efficiency
41 mm

54 mm

76 mm

83 mm

100 mm


48 mm 3.6 90%
4.25
60 mm 12.96 80%
15.3
18.1
72 mm 46.66 70%
55.08
65.025
76.77




Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

23HS22-280 NEMA 23 Planetary Geared Stepper Motor For Medical Appliance Robotic Arm 1 23HS22-280 NEMA 23 Planetary Geared Stepper Motor For Medical Appliance Robotic Arm 2 23HS22-280 NEMA 23 Planetary Geared Stepper Motor For Medical Appliance Robotic Arm 3 23HS22-280 NEMA 23 Planetary Geared Stepper Motor For Medical Appliance Robotic Arm 4





Please click the "Get  a quote" button below to tell us your requirements.
