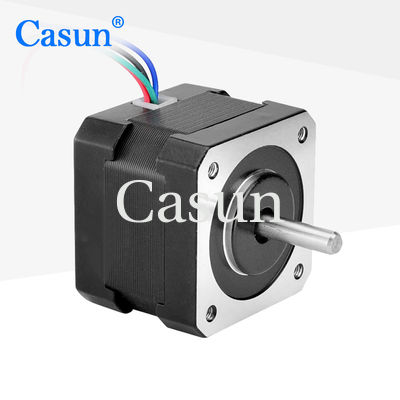

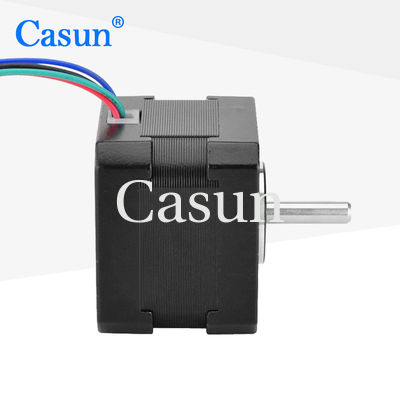

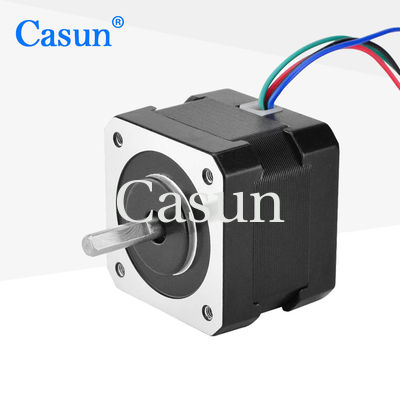

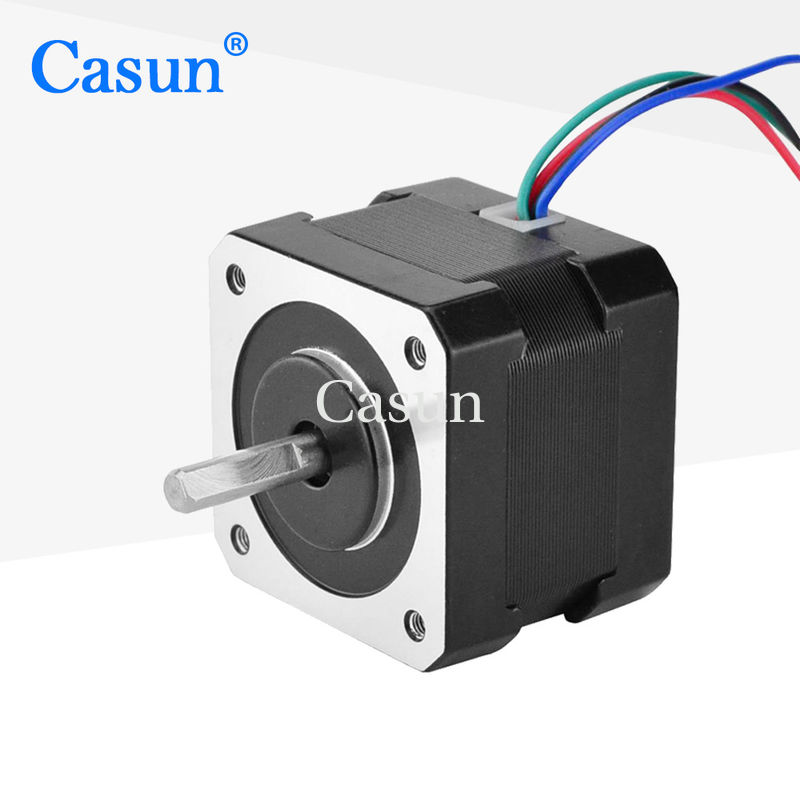

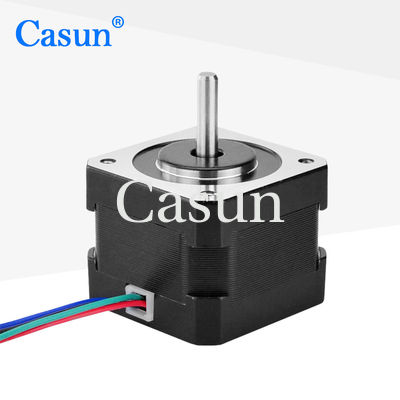

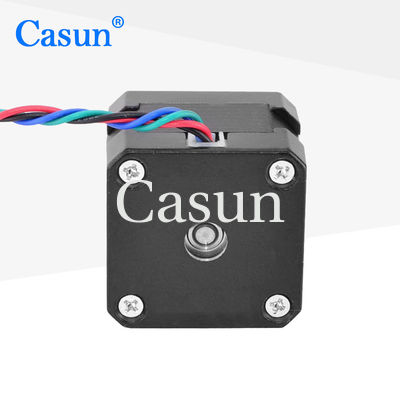

0.75A DC Bipolar Stepper Motor For 3D Printer Parts 42x42x34mm

0.75A DC Bipolar Stepper Motor For 3D Printer Parts 42x42x34mm

Brand Name:	Casun
Model Number:	42SHD4048-20BH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

320mN.m

Current:

0.75A

Motor Length:

34mm

Shaft:

Milling Flat Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

0.75A DC Bipolar Stepper Motor

Bipolar Stepper Motor For 3D Printer

Product Description

0.75A DC Bipolar Stepper Motor For 3D Printer Parts 42x42x34mm

The 42mm stepper motor is commonly used in 3D printers to drive the position and movement of the print head. High precision and reliability enable printers to accurately perform printing operations.

Key Features

Bipolar or unipolar versions available
We provide customized services and welcome contract manufacturing
A ten-year warranty for confident purchases
Professional research and development manufacturing
Seeking dealers!

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	0.75 A
Holding Torque	320 mN.m
Resistance	10 ohm
Inductance	15 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.2 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
