1.8 Degree NEMA 17 Stepper Motor DC 24V High Precision 4 Leads

1.8 Degree NEMA 17 Stepper Motor DC 24V High Precision 4 Leads

Brand Name:	Casun
Model Number:	42SHD4077-24BH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

192mN.m

Current:

0.24A

Motor Length:

34mm

Shaft:

Milling Flat Shaft 24mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

1.8 Degree NEMA 17 Stepper Motor

High Precision NEMA 17 Stepper Motor

Product Description

1.8 Degree NEMA 17 Stepper Motor DC 24V High Precision 4 Leads

The 42mm stepper motors have advantages in applications with high cost and complexity requirements. The control of stepper motors is relatively simple, usually only requiring a pulse signal to control the number of rotation steps and speed.

Features

Bipolar or unipolar versions available
Supply multiple international certifications for high-tech and electronic industry equipment
Focused on drivetrain solutions
Professional research and development manufacturing
Tailored service options

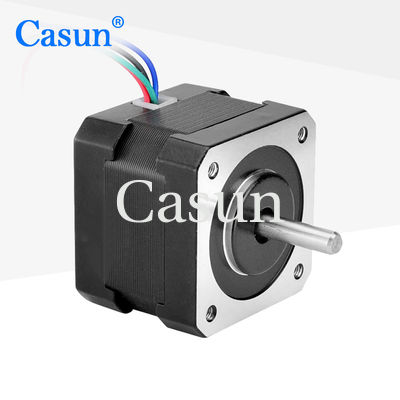

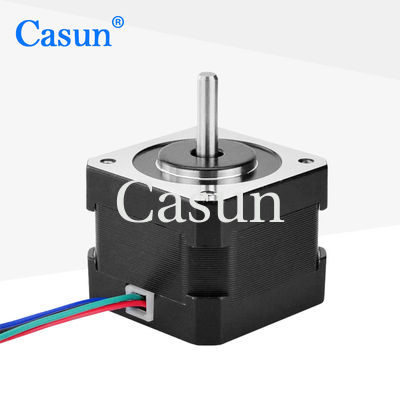

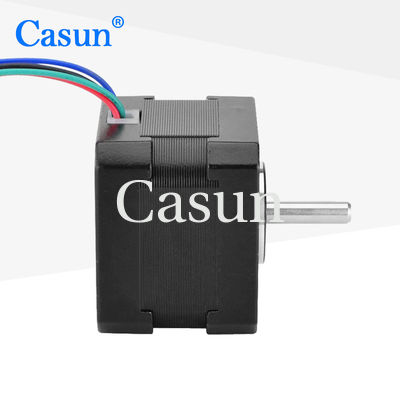

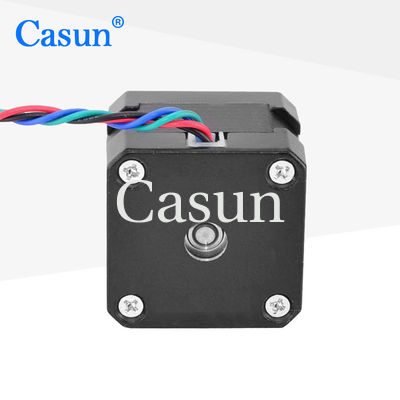

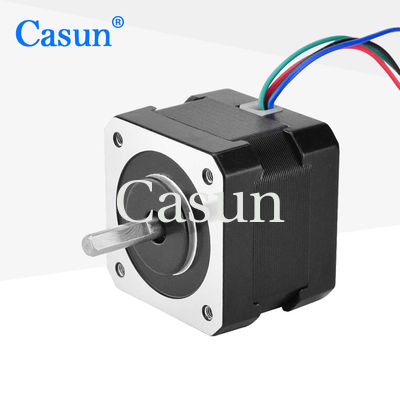

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	0.24 A
Holding Torque	192 mN.m
Resistance	50 ohm
Inductance	55 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.2 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements
