products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Special Shaft Stepper Motor
Created with Pixso.

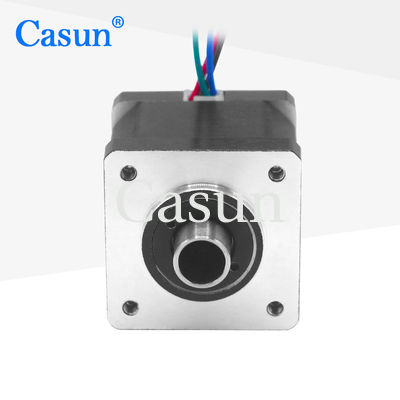

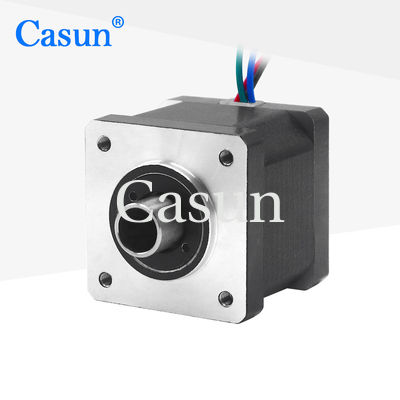

NEMA 14 Hollow Stepper Motor Dual Shaft 1.0A 0.19N.M For Image Scanners

name

NEMA 14 Hollow Stepper Motor Dual Shaft 1.0A 0.19N.M For Image Scanners

Brand Name: Casun
Model Number: P35SHD4150-9SKH
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
190mN.m
Current:
1.0A
Motor Length:
34mm
Shaft:
Double Hollow 9mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 14 Hollow Stepper Motor

,

Dual Shaft Hollow Stepper Motor

Product Description

NEMA 14 Hollow Stepper Motor Dual Shaft 1.0A 0.19N.M For Image Scanners



The central part of the rotor is designed to be hollow and can transmit signals such as gas, liquid, or optical fibers through axial through-holes.

Consisting of two independent rotors, each rotor can be independently controlled.



Features:

  • Our engineers will reach out within 48 hours to offer the optimal solution

  • A ten-year warranty for confident purchases

  • Available in variations with a single or double shaft

  • Expert manufacturing research and development

  • Our engineers will respond within 48 hours to provide the best solution





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

190 mN.m

Resistance

3.5 ohm

Inductance

3.6 mH

Rotor Inertia

20 g-cm²

Motor weight

0.18 kg

Number of leads

4

Connection

Bipolar



Appearance



NEMA 14 Hollow Stepper Motor Dual Shaft 1.0A 0.19N.M For Image Scanners 0

Dimensions

NEMA 14 Hollow Stepper Motor Dual Shaft 1.0A 0.19N.M For Image Scanners 1







Torque Curves









Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
