products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Special Shaft Stepper Motor
Created with Pixso.

0.43N.M Dual Shaft Stepper Motor NEMA 17 DC With Automatic Packaging Machine

name

0.43N.M Dual Shaft Stepper Motor NEMA 17 DC With Automatic Packaging Machine

Brand Name: Casun
Model Number: 42SHD4217-21SH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
430mN.m
Current:
1.0A
Motor Length:
40mm
Shaft:
Dual Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

0.43N.M Dual Shaft Stepper Motor

,

NEMA 17 Dual Shaft Stepper Motor

Product Description

0.43N.M Dual Shaft Stepper Motor NEMA 17 DC With Automatic Packaging Machine

The stepper motor achieves precise stepper motion by controlling pulse signals, with each pulse signal corresponding to a fixed stepper angle.

The driving method is relatively simple, usually only requiring pulse signals and directional signals.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • A ten-year warranty for confident purchasing

  • Our engineers will contact you within two days to offer the most effective solution

  • "We furnish a range of international certifications for equipment in the high-tech and electronics sectors

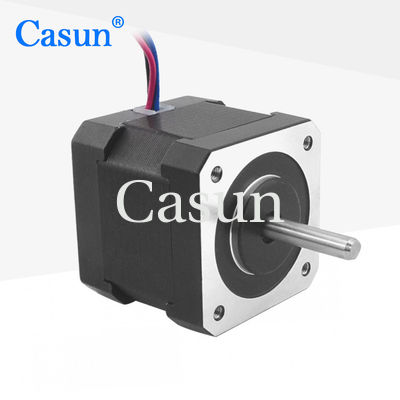

Appearance

0.43N.M Dual Shaft Stepper Motor NEMA 17 DC With Automatic Packaging Machine 0

Dimensions

0.43N.M Dual Shaft Stepper Motor NEMA 17 DC With Automatic Packaging Machine 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

430 mN.m

Resistance

2.3 ohm

Inductance

5.0 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
0.43N.M Dual Shaft Stepper Motor NEMA 17 DC With Automatic Packaging Machine 2 0.43N.M Dual Shaft Stepper Motor NEMA 17 DC With Automatic Packaging Machine 3 0.43N.M Dual Shaft Stepper Motor NEMA 17 DC With Automatic Packaging Machine 4 0.43N.M Dual Shaft Stepper Motor NEMA 17 DC With Automatic Packaging Machine 5



Please click the "Get a quote" button below to tell us your requirements.
