precise position control Double Stepper Motor NEMA 17 424240mm With CE ROHS ISO

precise position control Double Stepper Motor NEMA 17 424240mm With CE ROHS ISO

Brand Name:	Casun
Model Number:	42SHD4225-20SH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

500mN.m

Current:

1.2A

Motor Length:

40mm

Shaft:

Dual Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Precise Position Control Double Stepper Motor

Double Stepper Motor NEMA 17

Product Description

Precise Position Control Double Stepper Motor NEMA 17 42×42×40mm With CE ROHS ISO

This double stepper motor NEMA 17 (42×42×40mm) with CE, ROHS, and ISO certifications is specifically designed for applications requiring precise position control, such as printers, CNC machine tools, and textile machinery. The motor delivers rapid response to control signals with exceptional acceleration and deceleration capabilities.

Key Features

High torque and high precision performance
Currently seeking dealers for distribution
Ten-year warranty for confident purchasing
12 years of operation in China with over 800 satisfied customers
Comprehensive range of international certifications for high-tech and electronics sectors

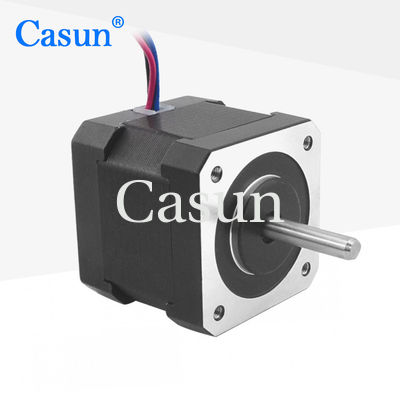

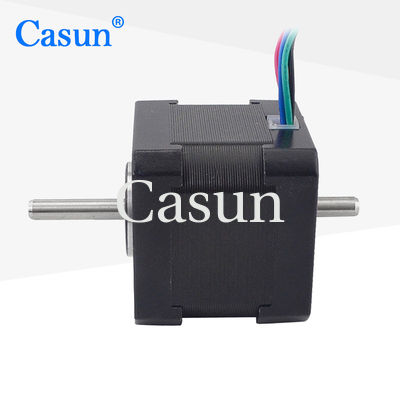

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	500 mN.m
Resistance	5.5 ohm
Inductance	11 mH
Rotor Inertia	57 g-cm²
Motor Weight	0.24 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft
