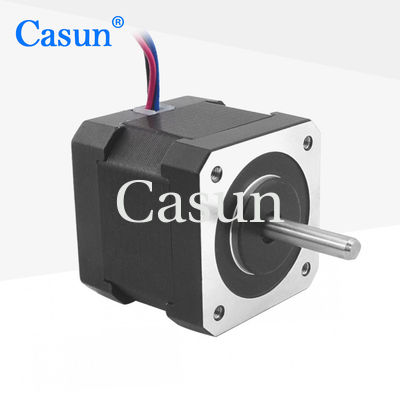

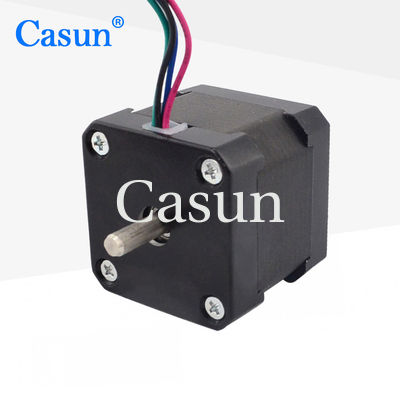

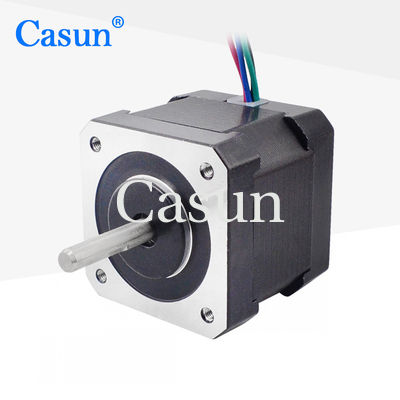

Two Axis 0.4N.M NEMA 17 Stepper Motor 1.7A 40mm Body For Robots

Two Axis 0.4N.M NEMA 17 Stepper Motor 1.7A 40mm Body For Robots

Brand Name:	Casun
Model Number:	42SHD4239-24SH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

400mN.m

Current:

1.7A

Motor Length:

40mm

Shaft:

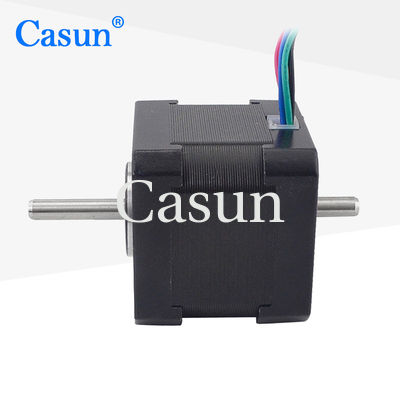

Dual Shaft 24mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

0.4N.M NEMA 17 Stepper Motor

Two Axis NEMA 17 Stepper Motor

40mm NEMA 17 Stepper Motor

Product Description

Two Axis 0.4N.M NEMA 17 Stepper Motor 1.7A 40mm Body For Robots

The 42mm dual axis motor does not require the use of sensors for feedback, reducing the complexity and cost of the system. Stepper motors have a long service life and high reliability due to their simple structure.

Key Features

Tailored service options
Seeking dealers!
A ten-year warranty for confident purchasing
Having operated in China for 12 years, we have catered to over 800 customers
Accepting contract manufacturing

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.7 A
Holding Torque	400 mN.m
Resistance	1.43 ohm
Inductance	2.75 mH
Rotor Inertia	57 g-cm²
Motor Weight	0.24 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min

Torque Curves

Torque curve diagrams available upon request.

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
