2 Phase 1.8 Degree NEMA 17 Dual Shaft Step Motor 0.45N.M For Automotive Equipment

2 Phase 1.8 Degree NEMA 17 Dual Shaft Step Motor 0.45N.M For Automotive Equipment

Brand Name:	Casun
Model Number:	42SHD4262-20S
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

450mN.m

Current:

2.0A

Motor Length:

40mm

Shaft:

Dual Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

NEMA 17 Dual Shaft Step Motor

2 Phase Dual Shaft Step Motor

Product Description

Step Motor 2 Phase 1.8 Degree NEMA 17 Dual Shaft 0.45N.M For Automotive Equipment

The 42mm dual axis stepper motor can quickly respond to control signals, achieving high acceleration and deceleration capabilities.

Its high-precision positioning and fast response capabilities enable it to adapt to complex production scenarios.

Features:

Tailored service options
Our engineers will react within 48 hours to offer the optimal solution
In search of partners!
Each stepper motor model is suitable for diverse scenarios
Accepting contract manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	2.0 A
Holding Torque	450 mN.m
Resistance	1.1 ohm
Inductance	2.6 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

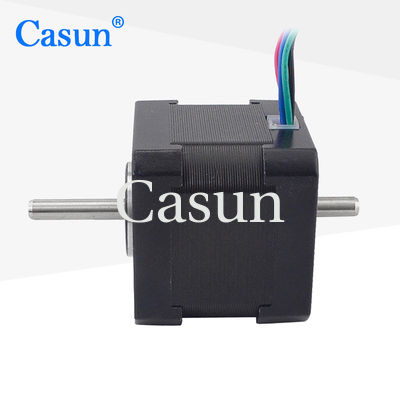

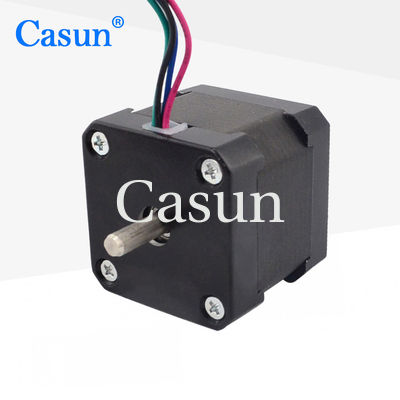

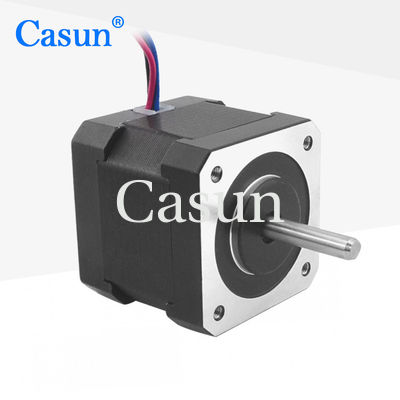

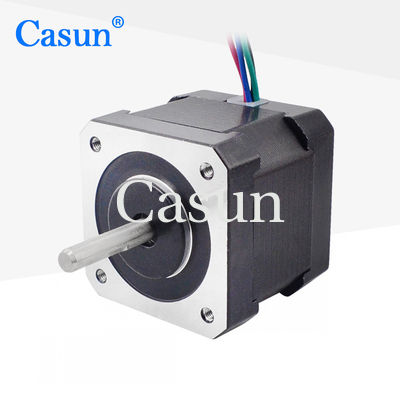

Appearance

2 Phase 1.8 Degree NEMA 17 Dual Shaft Step Motor 0.45N.M For Automotive Equipment 0

Dimensions

2 Phase 1.8 Degree NEMA 17 Dual Shaft Step Motor 0.45N.M For Automotive Equipment 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
