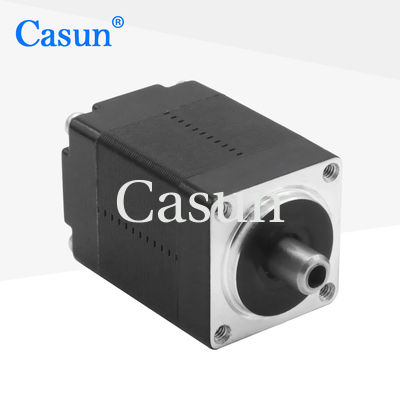

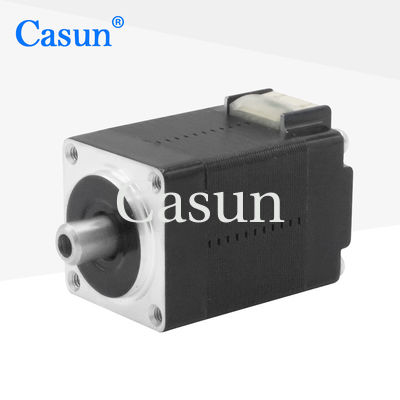

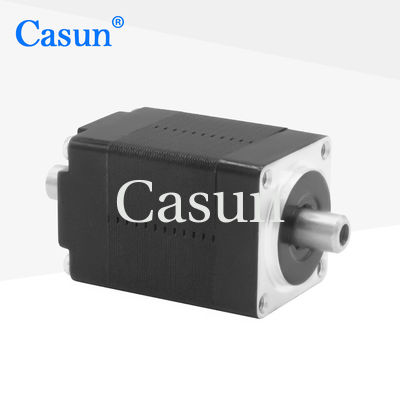

Nema 8 Dual Hollow Shaft Stepper Motor 30mm Body 0.6A With CE ROHS

name

Nema 8 Dual Hollow Shaft Stepper Motor 30mm Body 0.6A With CE ROHS

Brand Name: Casun
Model Number: 20SHD0001-7A
MOQ: 1PC
Price: $6.86-$10.5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Rated Current:
0.6A
Mass:
0.06kg
Holding Torque:
15mN.m
Body:
30mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Dual Hollow Shaft Stepper Motor

,

0.6A Dual Hollow Shaft Stepper Motor

,

Nema 8 Dual Shaft Stepper Motor

Product Description

Nema 8 Dual Hollow Shaft Stepper Motor 30mm Body 0.6A With CE ROHS

With two output shafts, it can drive two loads simultaneously, achieving precise multi axis control.

Very useful in applications that require simultaneous control of multiple moving components.



Features:

  • Versions in unipolar or bipolar are offered.

  • We are seeking partners!

  • Available in variations with a single or double shaft

  • Our engineers will respond within 48 hours to provide the best solution

  • Each model of stepper motor is suitable for various scenarios

Dimensions

Nema 8 Dual Hollow Shaft Stepper Motor 30mm Body 0.6A With CE ROHS 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20 mm

Number of Phase



2 Phase

Rated Current



0.6 A

Holding Torque



15 mN.m

Resistance



6.5 Om

Inductance



1.7mH

Rotor Inertia



2 g-cm²

Motor weight



0.06 kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Casun Model General Model Angle Motor Length Rated Current Holding Torque
B20SHD4353-10 8HS11-0204S 1.8° 28mm 0.2A 0.016 N.m
  8HS12-0506S 1.8° 28mm 0.5A 0.018N.m
20SHD0501-10 8HS13-0604S 1.8° 34.3mm 0.6A 0.018N.m
  8HS15-0304S 1.8° 38mm 0.3A 0.03N.m
20SHD4255-10X 8HS15-0604S 1.8° 38mm 0.6A 0.04N.m
20SHD4101-20   1.8° 42mm 0.8A 0.03N.m



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 8 Dual Hollow Shaft Stepper Motor 30mm Body 0.6A With CE ROHS 1 Nema 8 Dual Hollow Shaft Stepper Motor 30mm Body 0.6A With CE ROHS 2 Nema 8 Dual Hollow Shaft Stepper Motor 30mm Body 0.6A With CE ROHS 3 Nema 8 Dual Hollow Shaft Stepper Motor 30mm Body 0.6A With CE ROHS 4





Please click the "Get  a quote" button below to tell us your requirements.
