Product Details
Place of Origin: CHINA
Brand Name: Casun
Certification: CE,ROHS,ISO
Model Number: 42SHD4419-24Q
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $18.54-$30.94
Packaging Details: Carton:38x29x18cm
Delivery Time: 7-15 days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Color: |
Black |
Current / Phase: |
1.68Amp |
Holding Torque: |
2400mN.m |
Motor Length: |
76mm |
Customized: |
The Motor Can Be Designed &manufactured With Customized Request. |
Customized: |
The Motor Can Be Designed &manufactured With Customized Request. |
Color: |
Black |
Current / Phase: |
1.68Amp |
Holding Torque: |
2400mN.m |
Motor Length: |
76mm |
Customized: |
The Motor Can Be Designed &manufactured With Customized Request. |
Customized: |
The Motor Can Be Designed &manufactured With Customized Request. |
1. 8 degree Casun Closed Loop Stepper Motor 1200mN.M 57x54mm Stepper Motor With Nema 23 Stepper Motor Controller
Customizable Nema 23 Closed Loop Motor With 1200mN.M Holding Torque And CE Approval

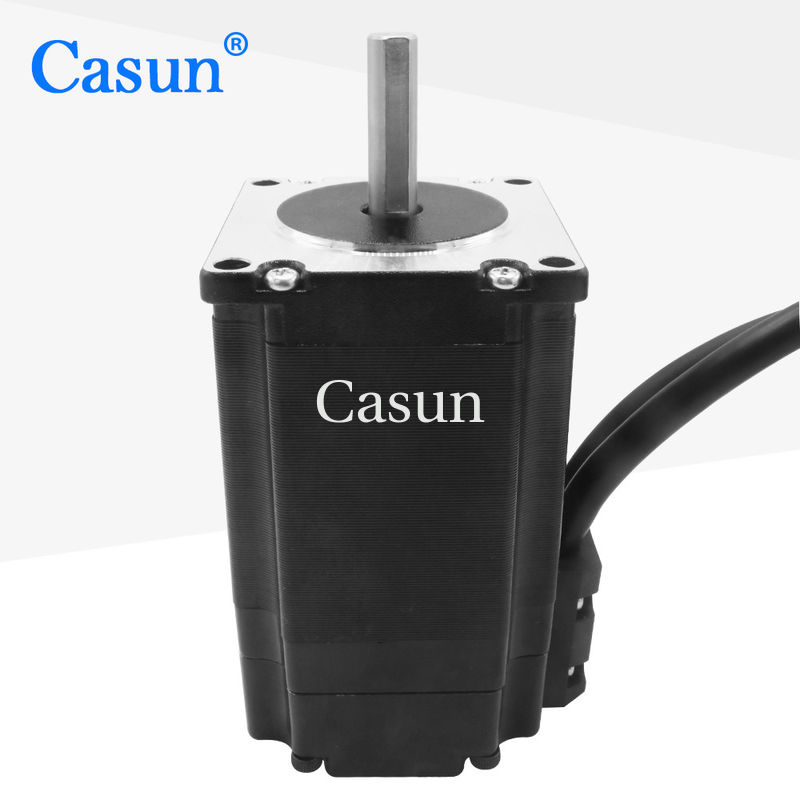

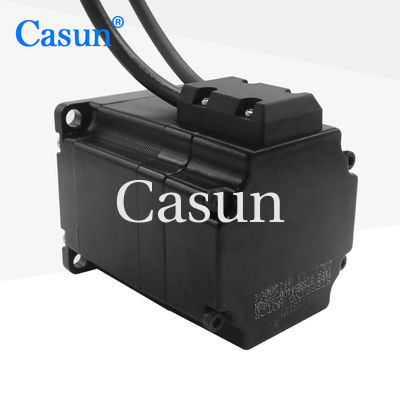

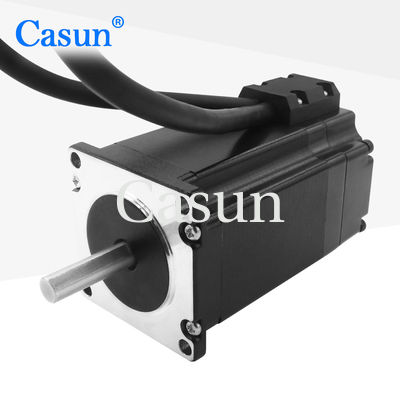

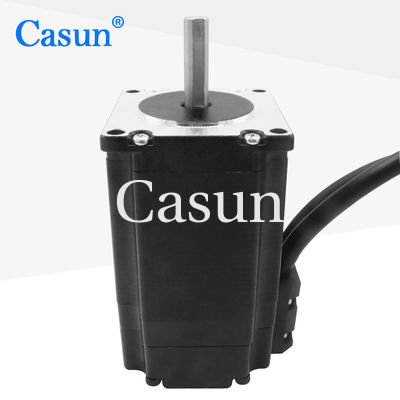

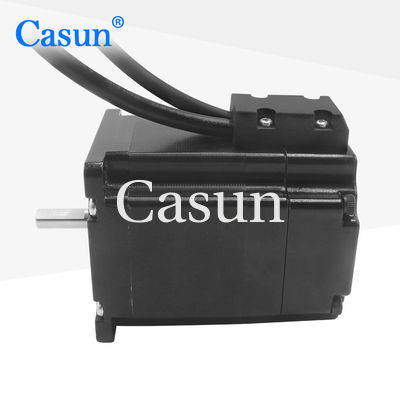

Nema23 Closed Loop Stepper Motor 1200mN.m 4.2Amp with Encoder
Torque: The motor has a holding torque of 1200mN.m (millinewton meters). Holding torque is the maximum torque the motor can produce when stationary.
Current: The motor operates with a current rating of 4.2A (Amperes). This indicates the maximum current the motor can handle without overheating during normal operation.
Encoder: The motor is equipped with an encoder, which is a device used to measure the position and speed of the motor shaft. The encoder provides feedback to the control system, allowing for closed-loop control. This feedback enables better accuracy and control over the motor's position.
Nema23: Nema23 is a standard motor frame size defined by the National Electrical Manufacturers Association (NEMA). It specifies the physical dimensions and mounting interfaces for the motor. Nema23 motors have a flange size of 2.3 inches (57.1 mm) and are commonly used in various applications.
Features:
Step Angel
|
1.8 ° |
Fram Size
|
57mm |
Number of Phase
|
2Phase |
Rated Current
|
4.2Amp |
Holding Torque
|
1200mN.m |
Resistance
|
1.2hm |
Inductance
|
2.8mH |
Rotor Inertia
|
72g-cm² |
Motor weight
|
0.68 kg |
Encoder Pulsh
|
1240PPS |
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Encoder
can customized
Voltage: 5 v
Output: A + A - B + B -
Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
