57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A For Automation Systems

57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A For Automation Systems

Brand Name:	Casun
Model Number:	57SHD4936-21BS
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

2.6N.m

Current:

4.2A

Motor Length:

100mm

Shaft:

Dual Shaft 21mm&15mm Length

Shaft Diameter:

8mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Dual Shaft NEMA 23 Stepper Motor

4.2A NEMA 23 Stepper Motor

Product Description

57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A As Automation Systems

The structure is relatively simple, without vulnerable components such as brushes and collector rings, resulting in a longer lifespan.

Very suitable for fields that require diversified motion control such as automation systems and robot control.

Features:

High torque and high precision
Tailored service options
We possess expertise in drivetrain solutions
Having operated in China for 12 years, we have catered to over 800 customers
Your purchase includes a ten-year warranty, ensuring confidence

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	4.2 A
Holding Torque	2.6 N.m
Resistance	0.64 ohm
Inductance	2.25 mH
Rotor Inertia	650 g-cm²
Motor weight1	1.3 kg
Number of leads	4
Connection	Bipolar

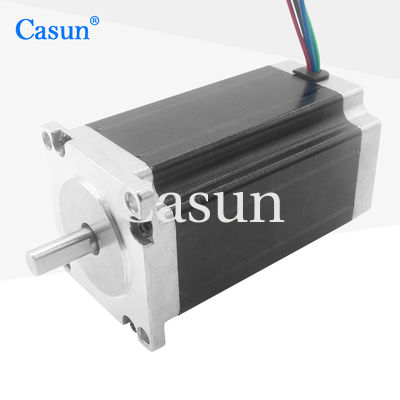

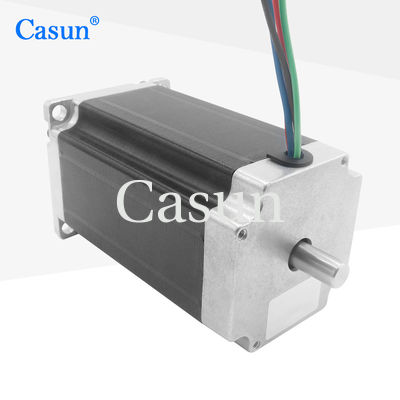

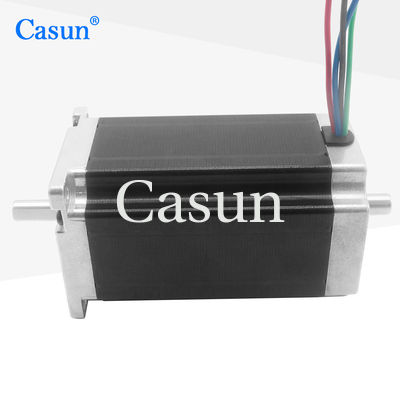

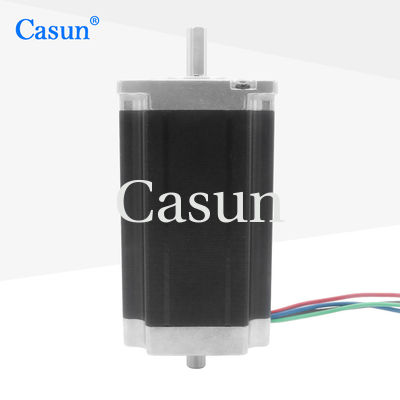

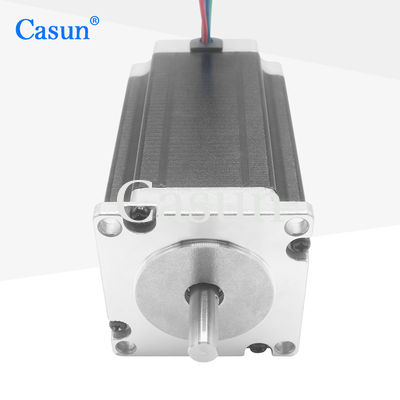

Appearance

57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A For Automation Systems 0

Dimensions

57x57x100mm NEMA 23 Stepper Motor Dual Shaft 4.2A For Automation Systems 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
