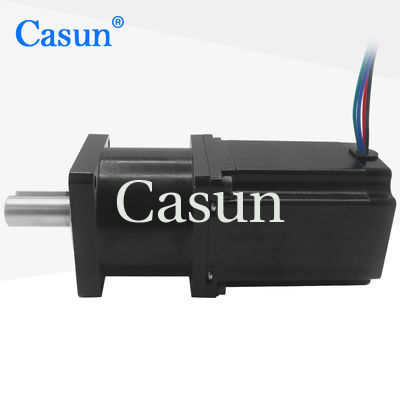

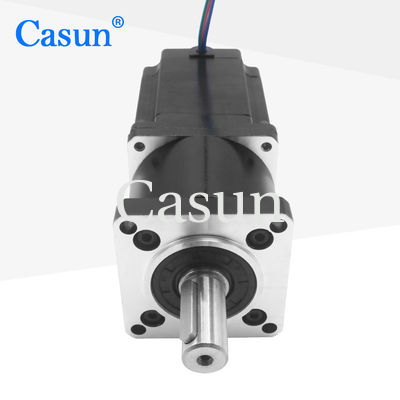

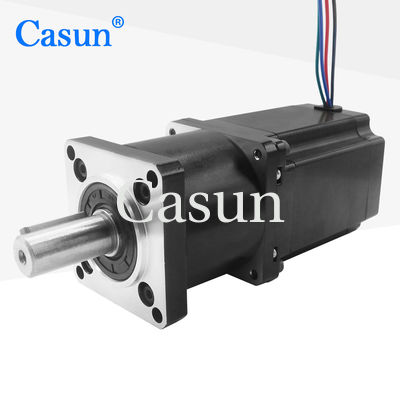

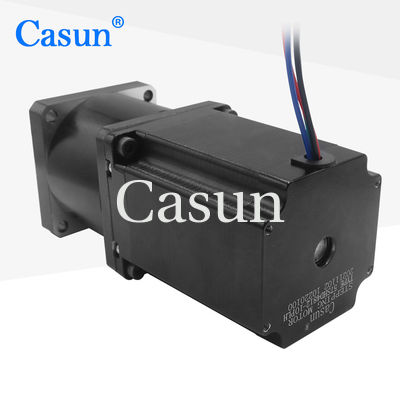

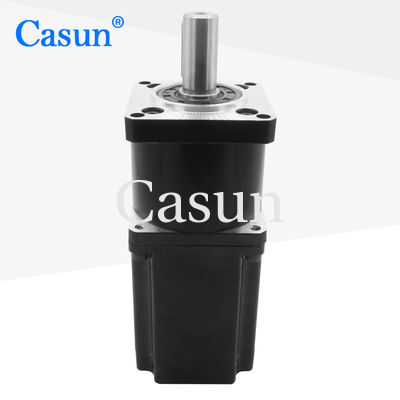

high speed NEMA 23 Stepper Motor With Planetary Reducer 2N.M 76mm For Smart Device

high speed NEMA 23 Stepper Motor With Planetary Reducer 2N.M 76mm For Smart Device

Brand Name:	Casun
Model Number:	57SHD4812-10PLH
MOQ:	1PC
Price:	$26.46-$29.46
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Key Words:

Geared Stepper Motor

Voltage:

3.36V

Reduction Ratio:

10：1

Step Angle(degrees):

1.8 Degree

Holding Torque:

2.0N.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

high speed NEMA 23 Stepper Motor

Planetary Reducer NEMA 23 Stepper Motor

Product Description

NEMA 23 Stepper Motor With Planetary Reducer 2N.M 76mm Body Ratio 10:1 For Smart Device

By increasing the transmission ratio of the gear system, the high-speed low torque of the motor is converted into low-speed high torque output.

Compared to other types of reducers, planetary reducers have higher efficiency.

Features:

Bipolar or unipolar versions available
Expertise in professional research and development manufacturing
Available in single or double shaft versions
CE and RoHS approved
Our engineers will respond within 48 hours to provide the best solution

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57mm
Number of Phase	2 Phase
Rated Current	2.8Amp
Holding Torque	2000 mN.m
Resistance	1.2 0hm
Inductance	3.6 mH
Rotor Inertia	460g-cm²
Motor weight	1.3kg
Gear Reduction Ratio	10:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

high speed NEMA 23 Stepper Motor With Planetary Reducer 2N.M 76mm For Smart Device 1

Please click the "Get a quote" button below to tell us your requirements.
