Precision 1.8 Degree NEMA 23 Stepper Motor 0.36N.M 1.68A For Textile machinery

name

Precision 1.8 Degree NEMA 23 Stepper Motor 0.36N.M 1.68A For Textile machinery

Brand Name: Casun
Model Number: 42SHD0229-24H
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
360mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Precision NEMA 23 Stepper Motor

,

Textile Machinery NEMA 23 Stepper Motor

Product Description
Precision 1.8 Degree NEMA 23 Stepper Motor 0.36N.M 1.68A For Textile Machinery
Precision, high reliability, simple control, and energy-saving motors suitable for various industrial and commercial applications including medical equipment, automation equipment, robotics, and textile machinery.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations on request

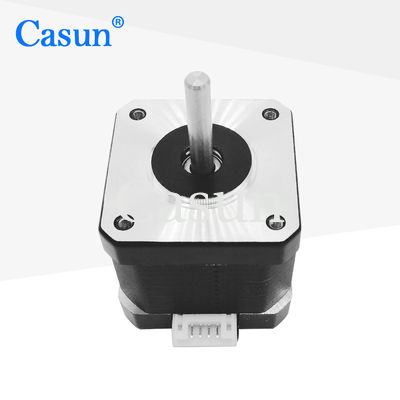

Appearance
Precision 1.8 Degree NEMA 23 Stepper Motor 0.36N.M 1.68A For Textile machinery 0
Dimensions
Precision 1.8 Degree NEMA 23 Stepper Motor 0.36N.M 1.68A For Textile machinery 1
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 1.68 A
Holding Torque 360 mN.m
Resistance 1.65 ohm
Inductance 3.2 mH
Rotor Inertia 57 g-cm²
Motor Weight 0.24 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Available Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Encoder
Precision 1.8 Degree NEMA 23 Stepper Motor 0.36N.M 1.68A For Textile machinery 2
Brake
Precision 1.8 Degree NEMA 23 Stepper Motor 0.36N.M 1.68A For Textile machinery 3
Gearbox
Precision 1.8 Degree NEMA 23 Stepper Motor 0.36N.M 1.68A For Textile machinery 4
Shaft
Precision 1.8 Degree NEMA 23 Stepper Motor 0.36N.M 1.68A For Textile machinery 5
Please click the button below to tell us your requirements and get a customized quote.
Get a Quote
