Special Shaft Stepper Motor
Created with Pixso.

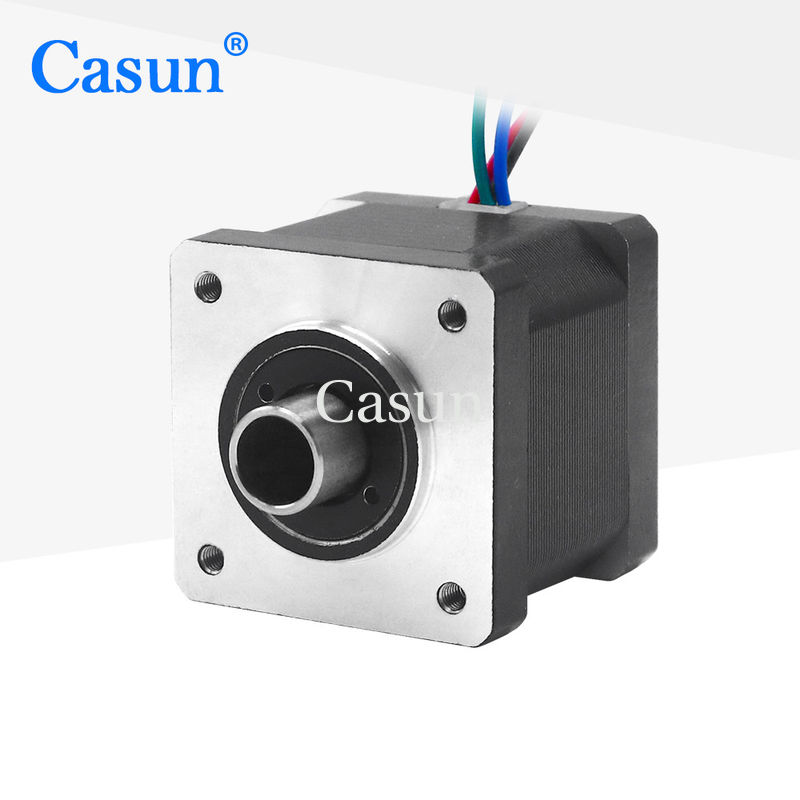

Nema 14 39X39 Hollow Stepper Motor 180mN.M For Automation Equipment

name

Nema 14 39X39 Hollow Stepper Motor 180mN.M For Automation Equipment

Brand Name: Casun
Model Number: 39SHD0303-5K
MOQ: 1PC
Price: $8.99.00-$13.99
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Color:
Black
Current / Phase:
0.4A
Holding Torque:
180mN.m
Step Angle:
1.8°
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29x18cm
Highlight:

Nema 14 Hollow Stepper Motor

,

Hollow Stepper Motor For Automation Equipment

Product Description

Nema14 39X39 Hollow Stepper Motor With 180mN.M High Quality For Automation Equipment

39X39mm Step Motor 180mN.M hollow Shaft Stepper Motor With High Quality


Hollow Shaft Stepper motor NEMA 14 180mN.m 39x39x34mm hybrid step motor for Automation machine.





Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Nema 14 39X39 Hollow Stepper Motor 180mN.M For Automation Equipment 0







Motor Specifications



Step Angel



1.8 °

Fram Size



39mm

Number of Phase



2 Phase

Rated Current



0.4Amp

Holding Torque



180mN.m

Resistance



-hm

Inductance



-mH

Rotor Inertia



-g-cm²

Motor weight



1.5kg















Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min















Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download





We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.



Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 14 39X39 Hollow Stepper Motor 180mN.M For Automation Equipment 1 Nema 14 39X39 Hollow Stepper Motor 180mN.M For Automation Equipment 2 Nema 14 39X39 Hollow Stepper Motor 180mN.M For Automation Equipment 3 Nema 14 39X39 Hollow Stepper Motor 180mN.M For Automation Equipment 4





Please click the "Get  a quote" button below to tell us your requirements.











Tags:

Nema 14 Hollow Stepper Motor

Hollow Stepper Motor For Automation Equipment
