products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Special Shaft Stepper Motor
Created with Pixso.

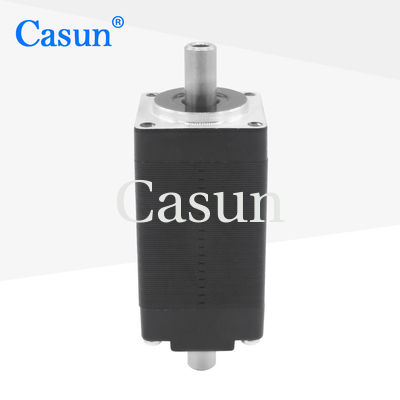

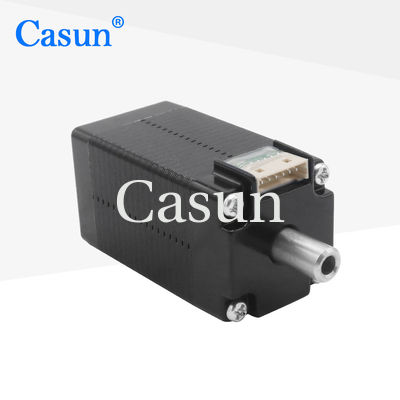

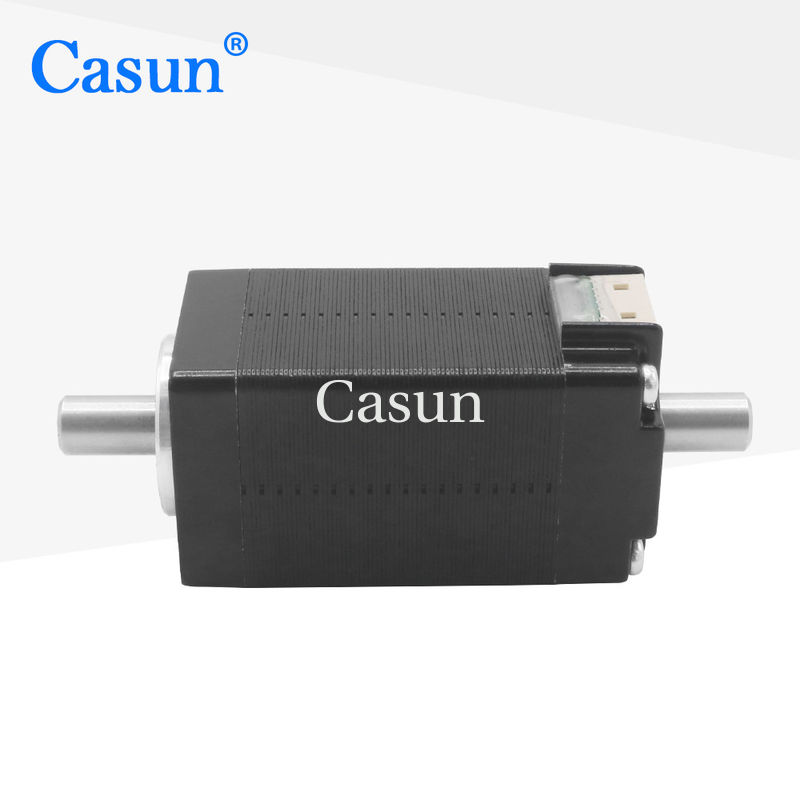

1.8 Degree 2 Phase Nema 8 20X20X38mm Stepper Motor Dual Hollow Shaft 0.6A 32mN.m

name

1.8 Degree 2 Phase Nema 8 20X20X38mm Stepper Motor Dual Hollow Shaft 0.6A 32mN.m

Brand Name: Casun
Model Number: 20SHD0250-10SK
MOQ: 1PC
Price: $6.86-$10.5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Body:
38mm
Current:
0.6A
Holding Torque:
32mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

32mN.m Nema 8 Stepper Motor

,

0.6A Nema 8 Stepper Motor

,

1.8 Degree Nema 8 Stepper Motor

Product Description

The dual axis design allows the motor to provide power in both directions simultaneously, which is very useful in some applications that require bidirectional motion.

Generally, one axis is used for rotation, while the other axis can be used for transmitting signals, pumping gas or liquid, etc.



Features:

  • Versions in unipolar or bipolar are offered

  • Professional drivetrain solution specialist

  • Available in variations with a single or double shaft

  • We offer custom services and accept contract manufacturing

  • Upon request, modifications

Dimensions

1.8 Degree 2 Phase Nema 8 20X20X38mm Stepper Motor Dual Hollow Shaft 0.6A 32mN.m 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



0.6 A

Holding Torque



32 mN.m

Resistance



9.0 Om

Inductance



3.2mH

Rotor Inertia



3.8 g-cm²

Motor weight



0.1 kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Casun Model General Model Angle Motor Length Rated Current Holding Torque
B20SHD4353-10 8HS11-0204S 1.8° 28mm 0.2A 0.016 N.m
  8HS12-0506S 1.8° 28mm 0.5A 0.018N.m
20SHD0501-10 8HS13-0604S 1.8° 34.3mm 0.6A 0.018N.m
  8HS15-0304S 1.8° 38mm 0.3A 0.03N.m
20SHD4255-10X 8HS15-0604S 1.8° 38mm 0.6A 0.04N.m
20SHD4101-20   1.8° 42mm 0.8A 0.03N.m



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1.8 Degree 2 Phase Nema 8 20X20X38mm Stepper Motor Dual Hollow Shaft 0.6A 32mN.m 1 1.8 Degree 2 Phase Nema 8 20X20X38mm Stepper Motor Dual Hollow Shaft 0.6A 32mN.m 2 1.8 Degree 2 Phase Nema 8 20X20X38mm Stepper Motor Dual Hollow Shaft 0.6A 32mN.m 3 1.8 Degree 2 Phase Nema 8 20X20X38mm Stepper Motor Dual Hollow Shaft 0.6A 32mN.m 4





Please click the "Get  a quote" button below to tell us your requirements.











Tags:

32mN.m Nema 8 Stepper Motor

0.6A Nema 8 Stepper Motor

1.8 Degree Nema 8 Stepper Motor
