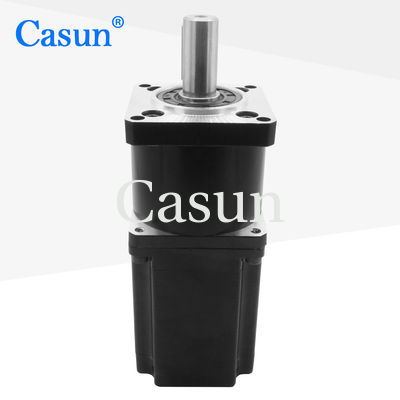

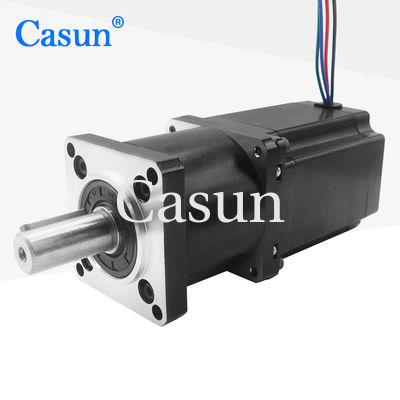

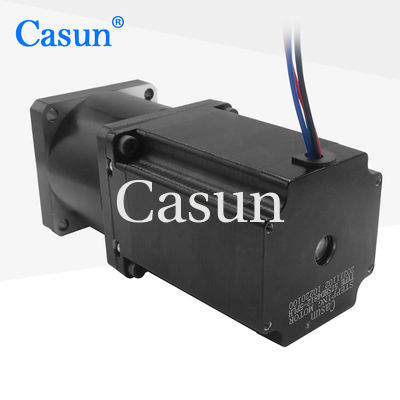

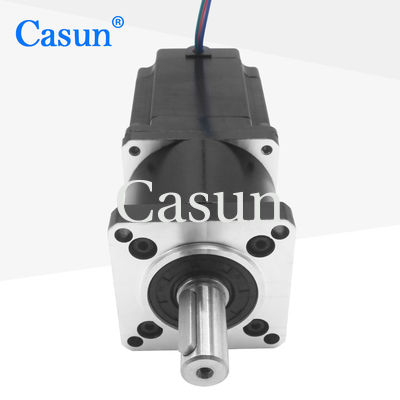

NEMA 23 Stepping Motor With Planetary Deceleration 76mm Body Reduction Ratio 5:1
  • NEMA 23 Stepping Motor With Planetary Deceleration 76mm Body Reduction Ratio 5:1
  • NEMA 23 Stepping Motor With Planetary Deceleration 76mm Body Reduction Ratio 5:1
  • NEMA 23 Stepping Motor With Planetary Deceleration 76mm Body Reduction Ratio 5:1
  • NEMA 23 Stepping Motor With Planetary Deceleration 76mm Body Reduction Ratio 5:1
  • NEMA 23 Stepping Motor With Planetary Deceleration 76mm Body Reduction Ratio 5:1
  • NEMA 23 Stepping Motor With Planetary Deceleration 76mm Body Reduction Ratio 5:1

NEMA 23 Stepping Motor With Planetary Deceleration 76mm Body Reduction Ratio 5:1

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 57SHD4812-5PLH
Product Details
Key Words:
Geared Stepper Motor
Torque Force:
2.0N.m
Weight:
1.3KG
Step Angle(degrees):
1.8 Degree
Ratio:
5:1
High Light:

Planetary Deceleration NEMA 23 Stepping Motor

,

76mm Body NEMA 23 Stepping Motor

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$26.46-$29.46
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

Planetary reducers can reduce the operating noise and vibration of the motor, making it smoother and quieter during operation.

In packaging equipment, it is used to control various stages of the packaging process, such as filling, sealing, and packaging.



Features:

  • Bipolar or unipolar versions available

  • Delivering high torque and accuracy

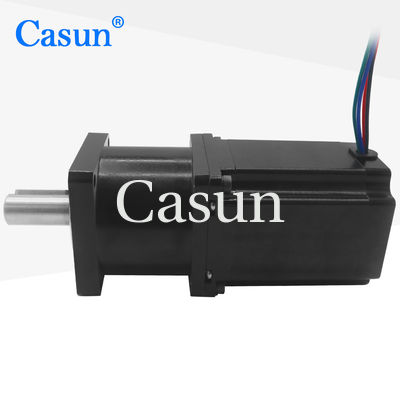

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Supply “numerous international certifications” for advanced technology and electronics industry equipment

Dimensions

NEMA 23 Stepping Motor With Planetary Deceleration 76mm Body Reduction Ratio 5:1 0







Motor Specifications



Step Angel



1.8 °

Fram Size



57mm

Number of Phase



2 Phase

Rated Current



2.8Amp

Holding Torque



2000 mN.m

Resistance



1.2 0hm

Inductance



3.6 mH

Rotor Inertia



460g-cm²

Motor weight



1.3kg

Gear Reduction Ratio





5:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
