Home > products > Geared Stepper Motor > High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio

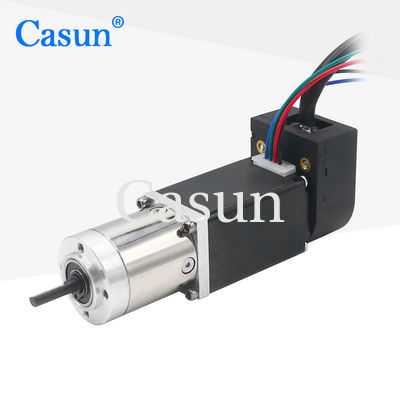

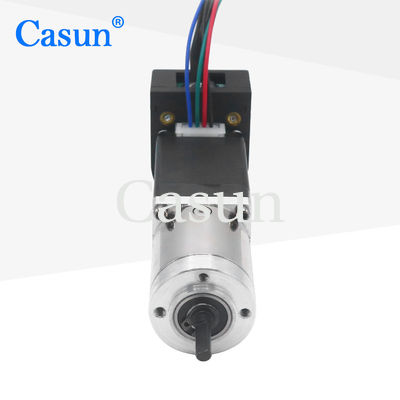

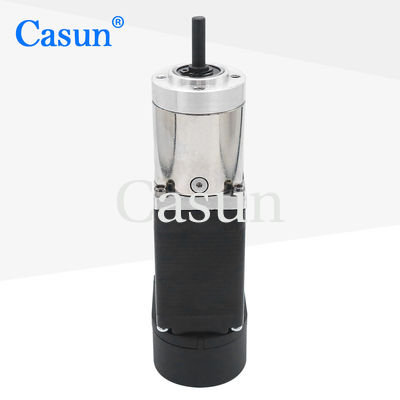

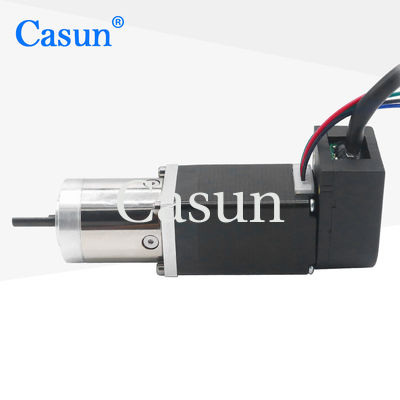

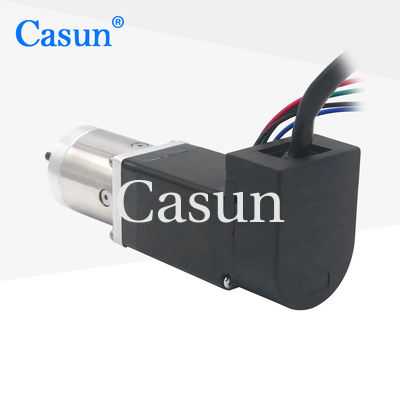

High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio
High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio
High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio
High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio
High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio
High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio
High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio

High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4401-19GQ

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $27.23-$30.23

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

High Torque NEMA 11 Stepper Motor

,

28*28*45mm NEMA 11 Stepper Motor

Key Words:
Geared Stepper Motor
Voltage:
4.56V DC
Step Angle(degrees):
1.8 Degree
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Gear Ratio:
19:1
Holding Torque:
95mN.m
Key Words:
Geared Stepper Motor
Voltage:
4.56V DC
Step Angle(degrees):
1.8 Degree
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Gear Ratio:
19:1
Holding Torque:
95mN.m
Product Description

Combining precise control of stepper motor and feedback capability of encoder, while increasing torque through reducer.

The encoder provides real-time position feedback, which can further improve the positioning accuracy of the motor.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Every stepper motor model is adaptable to various applications

  • Dealers are sought after!

Dimensions

High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.67Amp

Holding Torque



95mN.m

Resistance



6.8ohm

Inductance



4.9mH

Rotor Inertia



9g-cm²

Motor weight



0.16kg

Gear Reduction Ratio





19.2:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm		 27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio 1 High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio 2 High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio 3 High Torque NEMA 11 Stepper Motor 28*28*45mm 0.67A with Encoder 10 1 Reduction Ratio 4





Please click the "Get  a quote" button below to tell us your requirements.
