Special Shaft Stepper Motor
Created with Pixso.

1.8 Degree NEMA 14 Stepper Motor Dual Shaft 0.15N.m 4 Wires For Surveillance Camera

name

1.8 Degree NEMA 14 Stepper Motor Dual Shaft 0.15N.m 4 Wires For Surveillance Camera

Brand Name: Casun
Model Number: 35SHD0102-20S
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
150mN.m
Current:
0.75A
Motor Length:
34mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

0.15N.m NEMA 14 Stepper Motor

,

1.8 Degree NEMA 14 Stepper Motor

,

4 wires NEMA 14 Stepper Motor

Product Description

Dual axis stepper motor can control the motion of two axes simultaneously or in coordination.

Multiple fields including wire cutting, hair planting machine, packaging machine, ATM machine, inkjet printer, engraving machine, etc



Features:

  • Expert in professional drivetrain solutions

  • Hybrid stepper building

  • Available in variations with a single or double shaft

  • We provide multiple international certifications for high-tech and electronics industry equipment

  • Upon request, modifications





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.75 A

Holding Torque

150 mN.m

Resistance

5.8 ohm

Inductance

9.5 mH

Rotor Inertia

14 g-cm²

Motor weight

0.18 kg

Number of leads

4

Connection

Bipolar

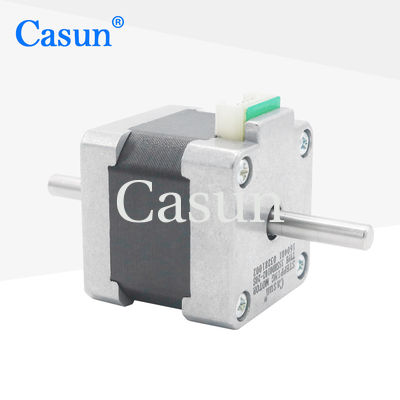

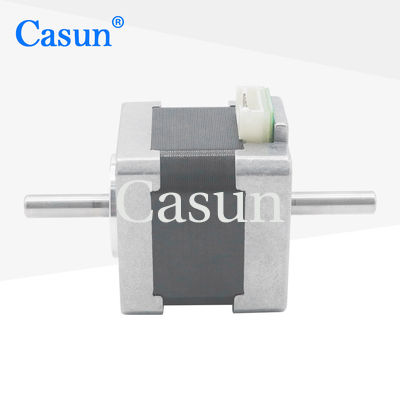

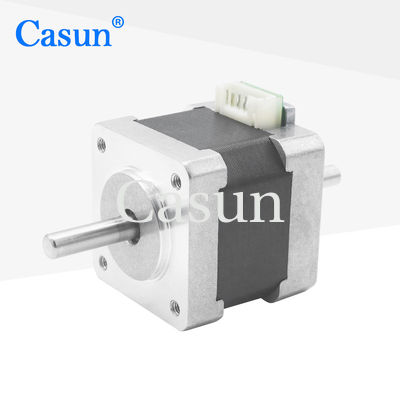

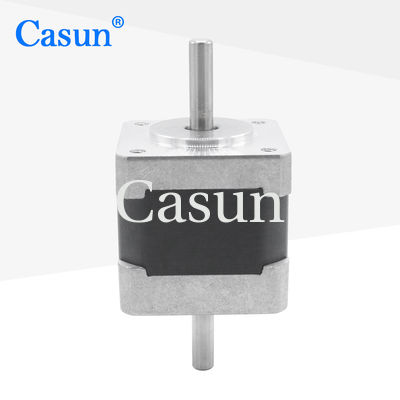

Appearance



1.8 Degree NEMA 14 Stepper Motor Dual Shaft 0.15N.m 4 Wires For Surveillance Camera 0

Dimensions

1.8 Degree NEMA 14 Stepper Motor Dual Shaft 0.15N.m 4 Wires For Surveillance Camera 1







Torque Curves









Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
