Linear Permanent Magnet Stepping Motor 280g.cm 4 wires 12V for Beauty Equipment

Linear Permanent Magnet Stepping Motor 280g.cm 4 wires 12V for Beauty Equipment

Brand Name:	Casun
Model Number:	G25LNH0062-17V3
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

15°

Holding Torque:

280g.cm

Drive Voltage:

12V DC

Resolution:

0.0061mm

Shaft:

Milling Flat Shaft 6mm Length

Rated Current:

0.6A

Packaging Details:

Carton:36x29x14cm

Highlight:

12V Linear Permanent Magnet Stepping Motor

280g.cm Linear Permanent Magnet Stepping Motor

Product Description

The structure is simple, with windings on the stator and permanent magnets on the rotor, making it compact and cost-effective to manufacture.

Widely used in various fields such as industrial automation, medical equipment, precision instruments, robots, 3D printers, etc.

Features:

Bipolar or unipolar versions available
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Our engineers will be in touch within 48 hours to provide the best solution
Professional research and development manufacturing

Motor Specifications

Step Angel	5.625 °
Fram Size	28 mm
Number of Phase	4 Phase
Reduction ratio	Class E
Holding Torque	280g.cm
Resistance per phase	8 ohm
Resolution	0.0061mm
Thrust (full step)	1.8kg(at1000pps)
Motor weight	30 g
Number of leads	2
Connection	Bipolar

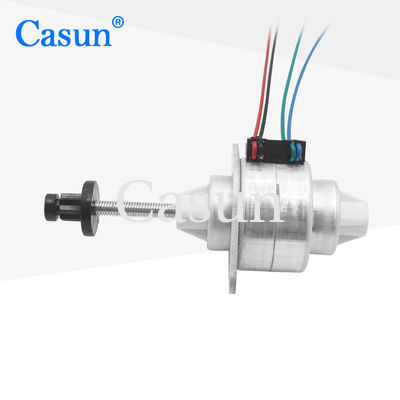

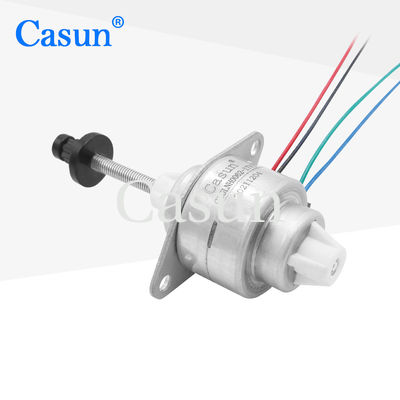

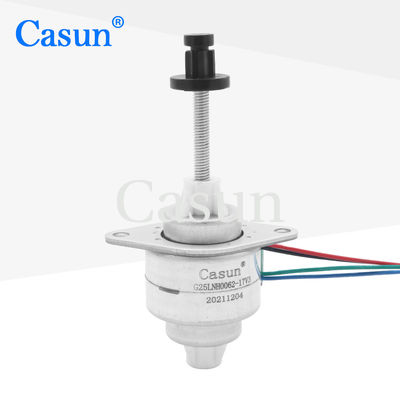

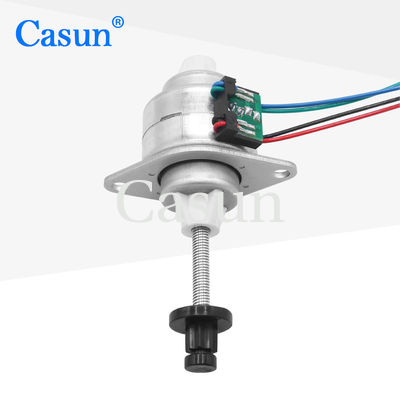

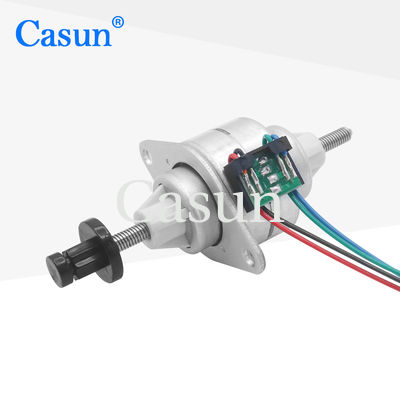

Appearance

Linear Permanent Magnet Stepping Motor 280g.cm 4 wires 12V for Beauty Equipment 0

Dimensions

Linear Permanent Magnet Stepping Motor 280g.cm 4 wires 12V for Beauty Equipment 1

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
