products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Special Shaft Stepper Motor
Created with Pixso.

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC

name

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC

Brand Name: Casun
Model Number: 42SHD0261-24SH1
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Dual Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

45Ncm Dual Shaft Stepper Motor

,

1.8 deg Dual Shaft Stepper Motor

,

1.68A Dual Shaft Stepper Motor

Product Description

The dual axis design can better achieve dual axis synchronous control and improve the positioning accuracy of the system.

Due to the mutual influence of the movements of the two axes, the dual output shaft stepper motor is more stable during operation.



Features:

  • Expertise in professional research and development manufacturing

  • For high-tech industry and electronic industry equipment

  • A ten-year warranty for confident purchasing

  • We offer personalized services and accept manufacturing contracts

  • We are a professional manufacturer engaged in research and development

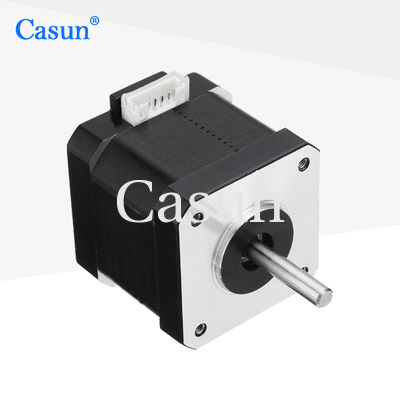

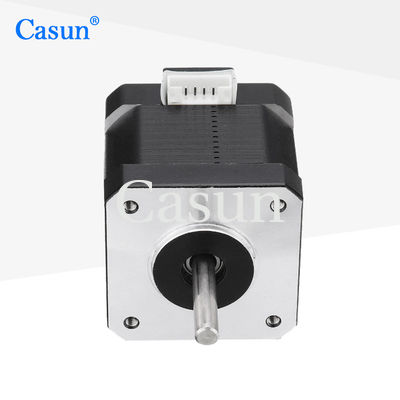

Appearance

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC 0

Dimensions

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

450 mN.m

Resistance

1.95 ohm

Inductance

4.4 mH

Rotor Inertia

57 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC 2 Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC 3 Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC 4 Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

45Ncm Dual Shaft Stepper Motor

1.8 deg Dual Shaft Stepper Motor

1.68A Dual Shaft Stepper Motor
