GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > 1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance

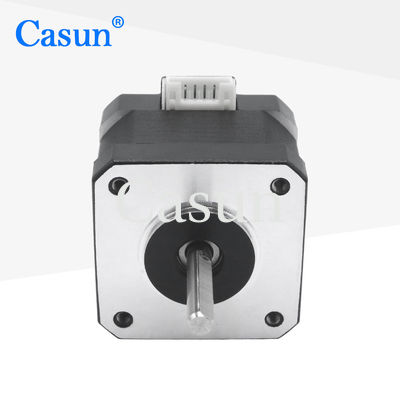

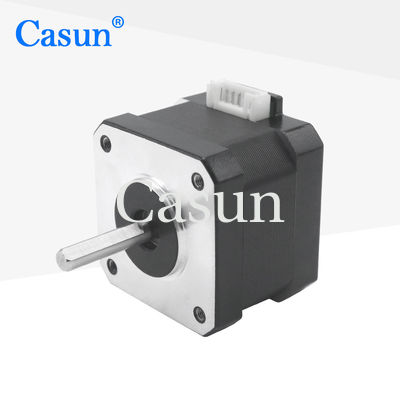

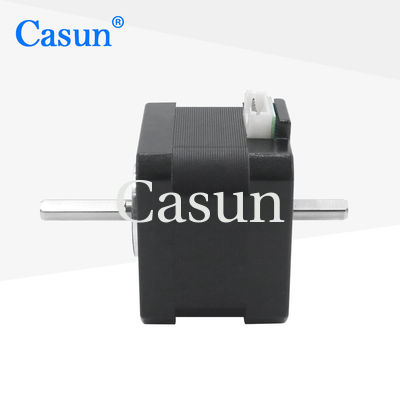

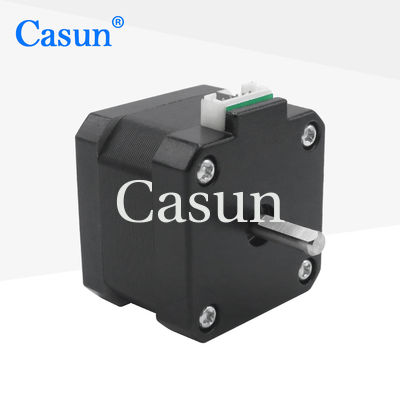

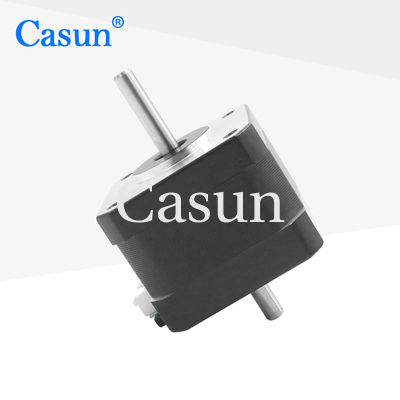

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance
1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance
1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance
1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance
1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance
1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0079-24SH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Medical Equipment NEMA 17 Stepper Motor

,

Dual Shaft NEMA 17 Stepper Motor

,

1.8 Degree NEMA 17 Stepper Motor

Step Angel:
1.8°
Holding Torque:
320mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Dual Shaft 20mm Length
Rated Voltage:
3.6V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
320mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Dual Shaft 20mm Length
Rated Voltage:
3.6V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Dual axis stepper motors can adapt to various applications, from simple linear motion to complex multi axis motion control.

The dual axis design can better achieve dual axis synchronous control and improve the positioning accuracy of the system.



Features:

  • Our engineers will contact you within two days to offer the most effective solution

  • Customized service offerings

  • Available in single or double shaft versions

  • Contract manufacturing is a service we offer

  • We specialize in providing professional drivetrain solutions





Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.33 A

Holding Torque

320 mN.m

Resistance

2.7 ohm

Inductance

4.2 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Appearance

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 0

Dimensions

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 2 1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 3 1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 4 1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance 5



Please click the "Get a quote" button below to tell us your requirements.
