Dual Shaft Nema 14 Stepper Motor 4 Leads 34mm 1.8deg 18Ncm 25.56oz.in 0.8A Step Motor

name

Dual Shaft Nema 14 Stepper Motor 4 Leads 34mm 1.8deg 18Ncm 25.56oz.in 0.8A Step Motor

Brand Name: Casun
Model Number: 42SHD0248-27S
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
180mN.m
Current:
0.8A
Motor Length:
34mm
Shaft:
Dual Shaft
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

34mm Dual Shaft Stepper Motor

,

18Ncm Dual Shaft Stepper Motor

,

Dual Shaft Nema 14 Stepper Motor

Product Description

Due to the dual axis stepper motor being able to drive two loads simultaneously, it can save space.

The dual axis stepper motor can be flexibly configured according to different application requirements.



Features:

  • Our products deliver high torque and precision

  • Supply various international accreditations for the tech and electronics sectors

  • Expertise in transmission system solutions, with a focus on specialized expertise

  • Our manufacturing process is backed by professional research and development

  • Ten-year warranty and purchase with confidence

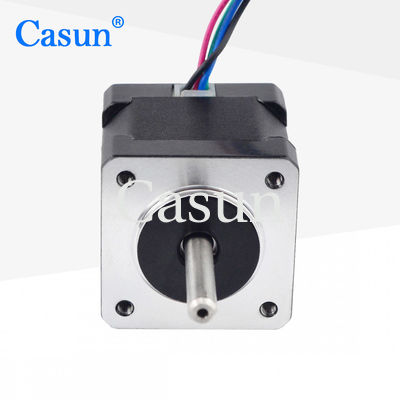

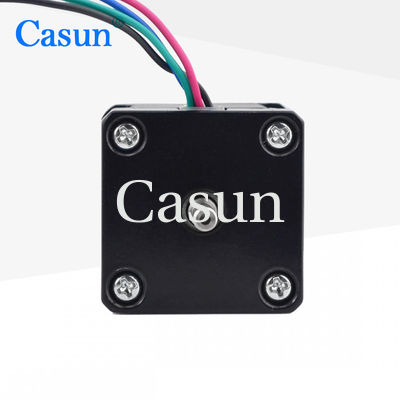

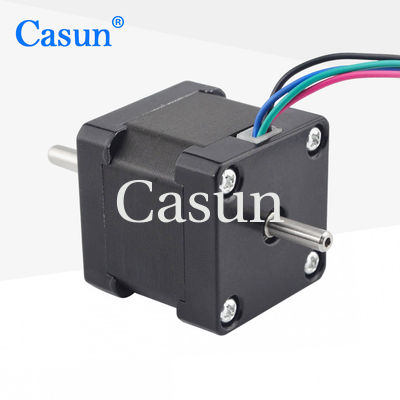

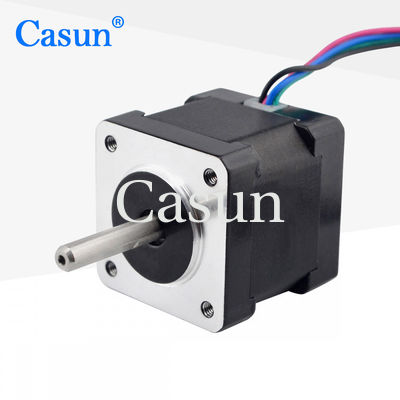

Appearance

Dual Shaft Nema 14 Stepper Motor 4 Leads 34mm 1.8deg 18Ncm 25.56oz.in 0.8A Step Motor 0

Dimensions

Dual Shaft Nema 14 Stepper Motor 4 Leads 34mm 1.8deg 18Ncm 25.56oz.in 0.8A Step Motor 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

180 mN.m

Resistance

6.8 ohm

Inductance

10 mH

Rotor Inertia

14 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Dual Shaft Nema 14 Stepper Motor 4 Leads 34mm 1.8deg 18Ncm 25.56oz.in 0.8A Step Motor 2 Dual Shaft Nema 14 Stepper Motor 4 Leads 34mm 1.8deg 18Ncm 25.56oz.in 0.8A Step Motor 3 Dual Shaft Nema 14 Stepper Motor 4 Leads 34mm 1.8deg 18Ncm 25.56oz.in 0.8A Step Motor 4 Dual Shaft Nema 14 Stepper Motor 4 Leads 34mm 1.8deg 18Ncm 25.56oz.in 0.8A Step Motor 5



Please click the "Get a quote" button below to tell us your requirements.
