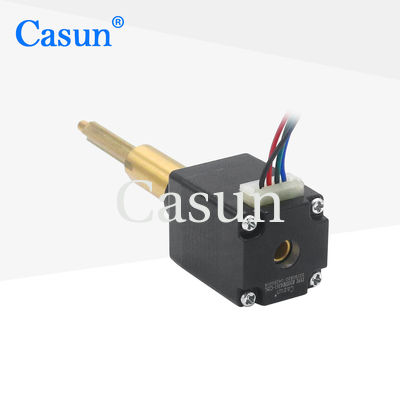

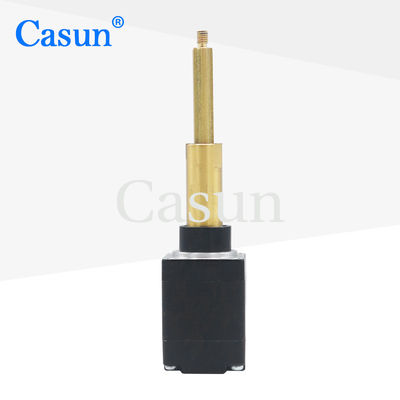

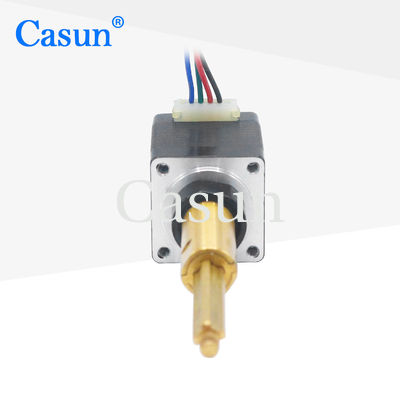

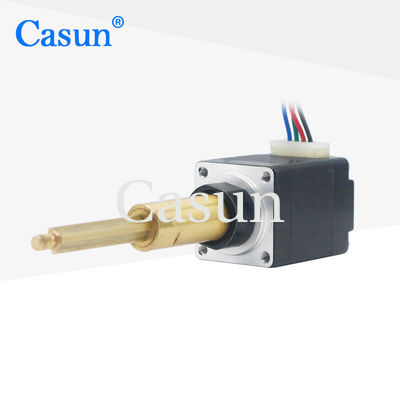

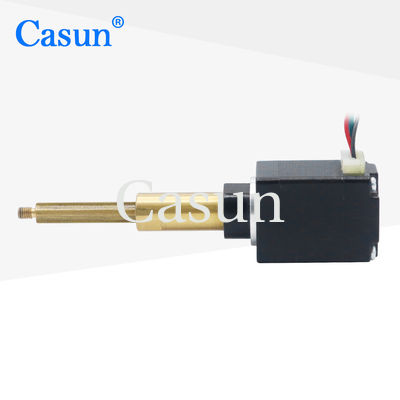

20×20×27.5mm Captive Stepper Motor 0.5A NEMA 8 For CE RoHS

20×20×27.5mm Captive Stepper Motor 0.5A NEMA 8 For CE RoHS

Brand Name:	Casun
Model Number:	B20SHD4351-C25L
MOQ:	1PC
Price:	$25-$29
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8degree

Phase:

Rated Voltage:

2.55V

Rate Current:

0.5A

Minimal Thrust:

0.5kg At 600pps

Weight:

0.1KG

Insulation:

Class B

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Class B Insulation Captive Stepper Motor

NEMA 8 Captive Stepper Motor

0.5A Captive Stepper Motor

Product Description

20×20×27.5mm Captive Stepper Motor 0.5A NEMA 8 For CE RoHS

By controlling the pulse signal to regulate the speed and direction of motion, the movement of the linear push rod can be precisely controlled. The linear push rod stepper motor is compact in size and can be integrated into various devices.

Features

Bipolar or unipolar versions available
Hybrid stepper construction
Multiple international certifications for high-tech and electronics industries
CE and RoHS-approved
12 years of operation in China, serving over 800 customers

Dimensions

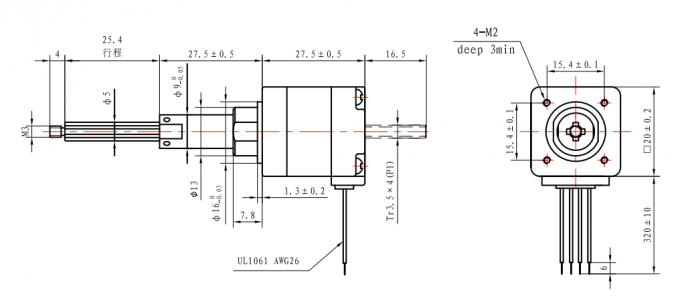

20×20×27.5mm Captive Stepper Motor dimensional diagram

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Minimum Thrust	0.1 kg
Resistance	5.1 Ω
Inductance	1.5 mH
Rotor Inertia	2 g-cm²
Motor Weight	0.1 kg
Lead Screw	NON
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Torque Curves

Submodels

Motor Length	Stroke	Dimension	Dimension
27.5 mm	25.4 mm	27.5 mm	17.2 mm Max
31.8 mm	33.9 mm	22 mm Max
38.1 mm	40.2 mm	28 mm Max

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, travel, linear travel per step, etc.
