Captive Stepper Motor
Created with Pixso.

NEMA 14 Captive Step Motor 41×41×30mm 0.2N.m

name

NEMA 14 Captive Step Motor 41×41×30mm 0.2N.m

Brand Name: Casun
Model Number: P35SHD4206-C38T
MOQ: 1PC
Price: $26-$31
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
200mN.m
Current:
1.0A
Motor Length:
41mm
Strok:
55mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

NEMA 14 Captive Step Motor

,

41×41×30mm Captive Step Motor

,

0.2N.m Captive Step Motor

Product Description

The linear push rod stepper motor can accelerate from a stopped state to a working speed in a short period of time, and can immediately stop or reverse.

There is no complex mechanical structure, and maintenance is relatively simple.



Features:

  • Bipolar or unipolar versions available

  • Dealers wanted!

  • Specializing in tailor-made services is our expertise

  • Contract-based manufacturing services are welcome

  • Every stepper motor model is adaptable to various applications

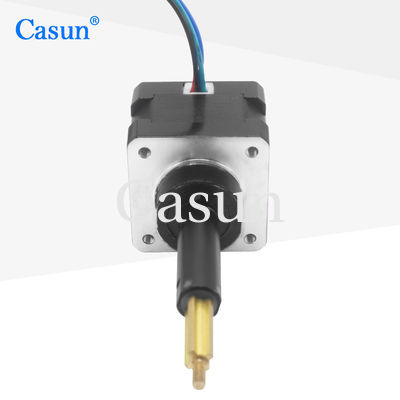

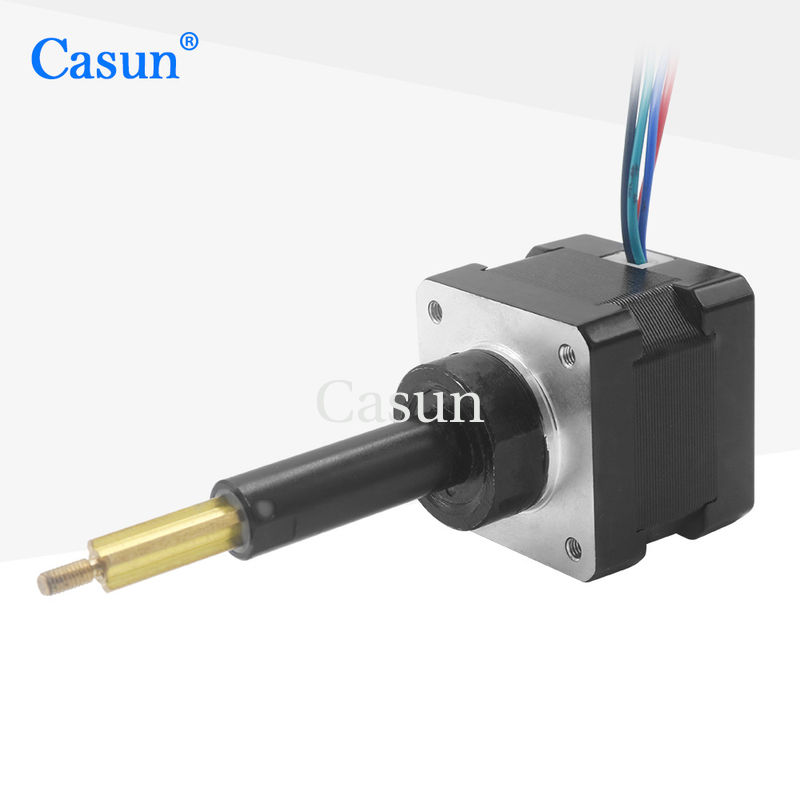

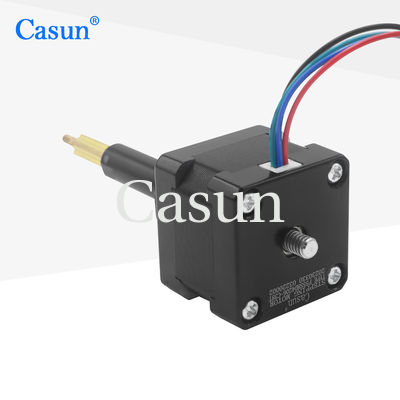

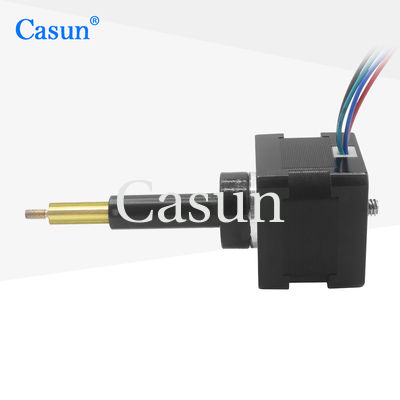

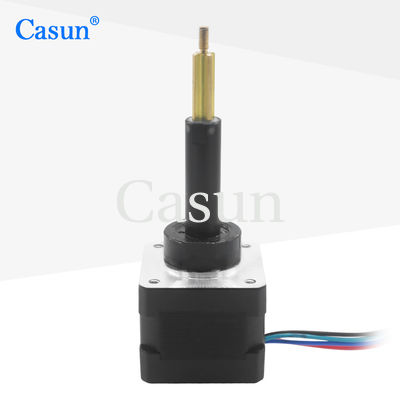

Appearance



NEMA 14 Captive Step Motor 41×41×30mm 0.2N.m 0

Dimensions

NEMA 14 Captive Step Motor 41×41×30mm 0.2N.m 1



Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.75 A

Holding torque

200mN.m

Resistance

12 ohm

Inductance

13 mH

Rotor Inertia

18 g.cm²

Motor weight

0.18 kg

Number of leads

4

Connection

Bipolar









Torque Curves













NEMA 14 Captive Step Motor 41×41×30mm 0.2N.m 2

Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
