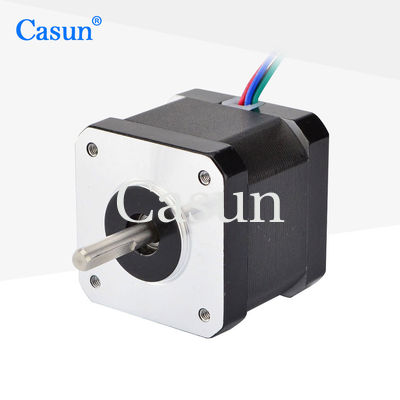

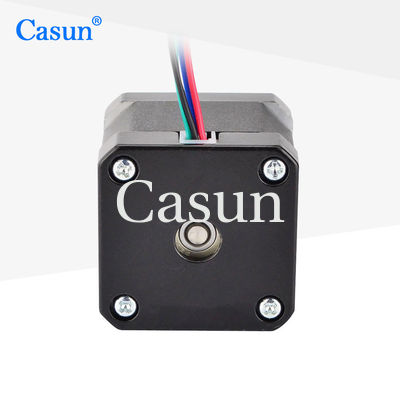

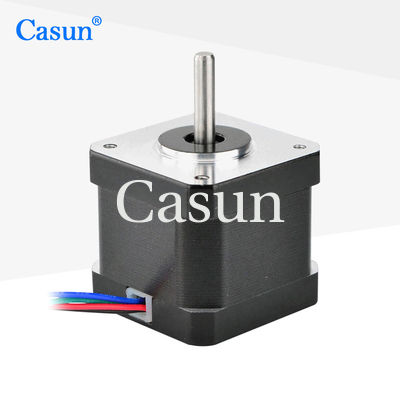

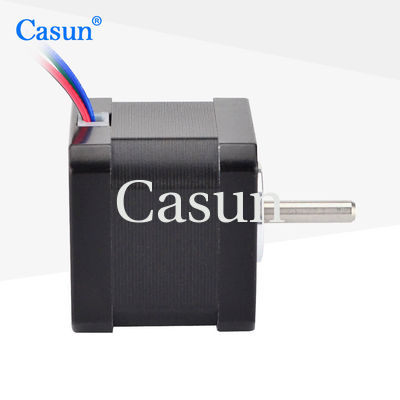

Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE

Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE

Brand Name:	Casun
Model Number:	42SHD4217-24BH
MOQ:	1PC
Price:	$5.0-$6.2
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

500mN.m

Current:

1.5A

Motor Length:

40mm

Shaft:

Round Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Stepping Motor 1.5Amp

Stepping Motor NEMA 17

Product Description

Stepping Motor 1.5Amp 500mN.m 42×42×40mm NEMA 17 With ISO CE

Dual axis stepper motors can adapt to various applications, from simple linear motion to complex multi-axis motion control. The dual axis design enables better dual-axis synchronous control and improves system positioning accuracy.

Key Features & Services

Our engineers will contact you within two days to offer the most effective solution
Customized service offerings
Available in single or double shaft versions
Contract manufacturing services
Professional drivetrain solutions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	450 mN.m
Resistance	2.3 ohm
Inductance	5.0 mH
Rotor Inertia	57 g-cm²
Motor Weight	0.3 kg
Number of Leads	4
Connection	Bipolar

Appearance

Dimensions

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
