products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment

name

Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment

Brand Name: Casun
Model Number: 17HS08-1004S1
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8
Holding Torque:
100mN.m
Current:
0.8A
Motor Length:
20mm
Shaft:
Milling Flat Shaft 13.6mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Nema 17 Stepper Motor 1.0A

,

Medical Equipment Nema 17 Stepper Motor

,

Nema 17 Stepper Motor 130mN.m

Product Description

Stepper motors have strong resistance to power voltage fluctuations and electromagnetic interference, and can operate stably in harsh environments.

It is widely used in many applications such as 3D printers, CNC machine tools, etc.



Features:

  • Provide "multiple international certifications"

  • We have a proven track record of success, serving over 800 customers in China for the past 12 years

  • Our products deliver high torque and precision

  • Professional drivetrain solution specialist

  • Seeking distributors

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

100 mN.m

Resistance

3.3 ohm

Inductance

3.0 mH

Rotor Inertia

15 g-cm²

Motor weight

0.14 kg

Number of leads

4

Connection

Bipolar

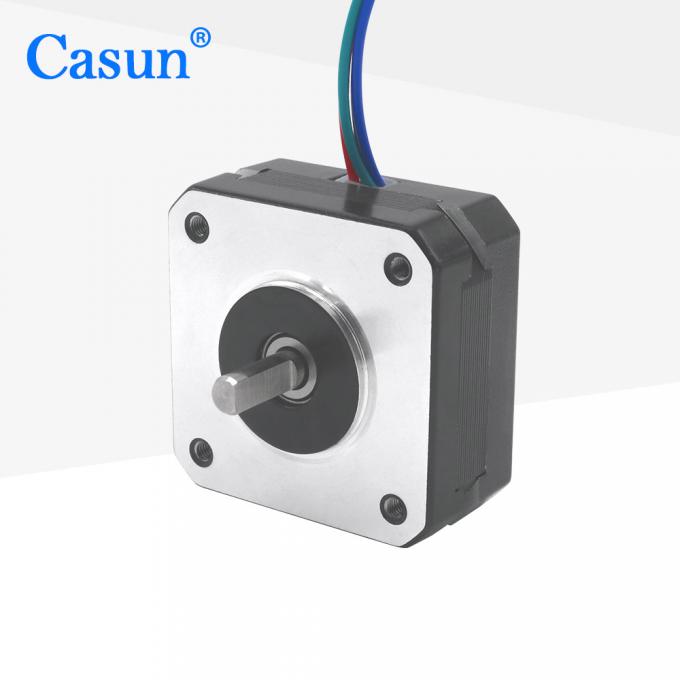

Appearance

Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment 0

Dimensions

Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment 2 Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment 3 Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment 4 Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment 5



Please click the "Get a quote" button below to tell us your requirements.
