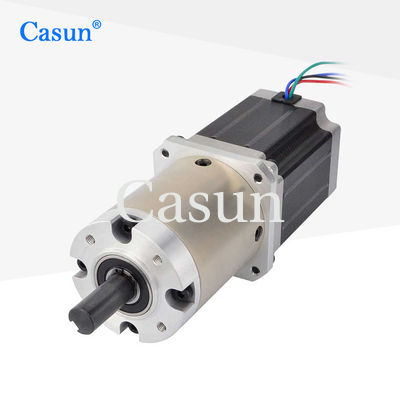

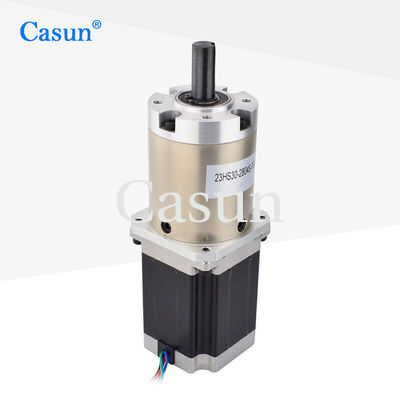

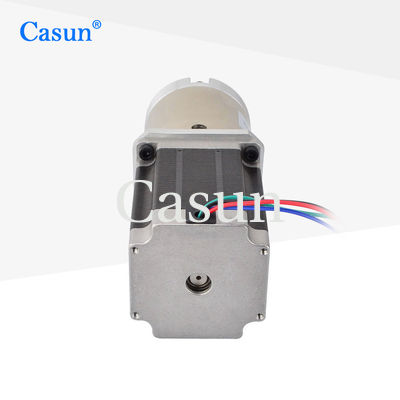

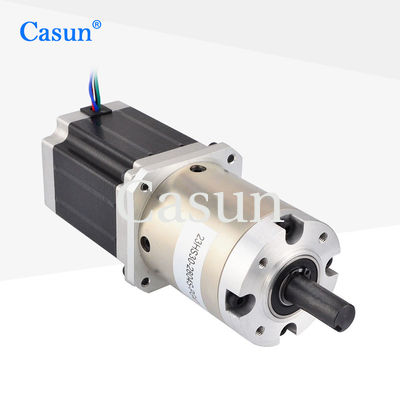

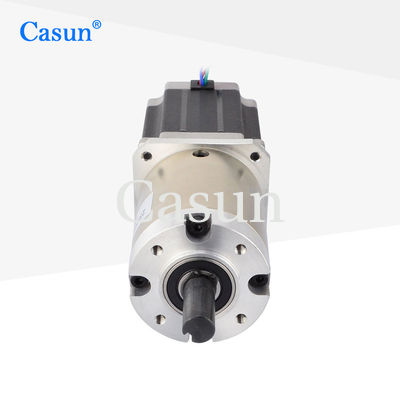

NEMA 23 Planetary Gearbox Stepper Motor With 72mm 1/47 Gearbox For Automation Home Appliance Medical Appliance

NEMA 23 Planetary Gearbox Stepper Motor With 72mm 1/47 Gearbox For Automation Home Appliance Medical Appliance

Brand Name:	Casun
Model Number:	23HS30-2804S-PG47
MOQ:	1PC
Price:	$24.89-$33.13
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Body:

76mm

Reduction Ratio:

1：47

Packaging Details:

Carton:38x29x18cm

Highlight:

Customized Planetary Gearbox Stepper Motor

72mm Planetary Gearbox Stepper Motor

Automation Planetary Gearbox Stepper Motor

Product Description

NEMA 23 Planetary Gearbox Stepper Motor With 72mm 1/47 Gearbox

When the deceleration stepper motor operates at low speeds, the output is smoother due to the effect of the reducer, avoiding the possible vibration or stepping loss of the stepper motor at low speeds. Widely used in industrial automation, robotics, medical equipment, household appliances and other fields.

Key Features

Versions in unipolar or bipolar are offered
Deliver multiple international certifications for electrical and high-tech devices
Available in single or double shaft versions
Our products are backed by a ten-year warranty, giving you peace of mind
We specialize in custom solutions

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1.89 N.m
Resistance	1.13 Ohm
Inductance	5.6 mH
Rotor Inertia	460 g-cm²
Motor Weight	1.4 kg
Gear Reduction Ratio	46.66:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤250N
Max. Shaft Axial Load	≤100N
Radial Play of Shaft (near to Flange)	≤0.08m
Axial Play of Shaft	≤0.4mm
Backlash at No-load	≤2.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
41 mm	48 mm	3.6	90%
54 mm		4.25	60 mm
76 mm		12.96		80%
83 mm		15.3
100 mm		18.1
Various	72 mm	46.66	70%
Various	Various	55.08	Various
Various	Various	65.025	Various
Various	Various	76.77	Various

Custom Solutions Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Get a Quote
