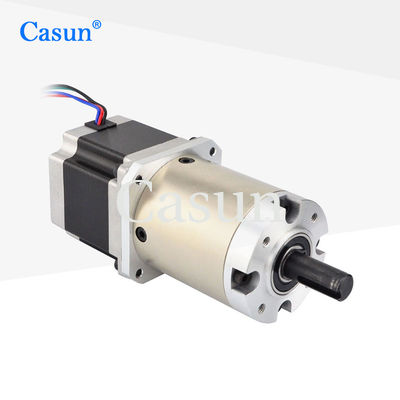

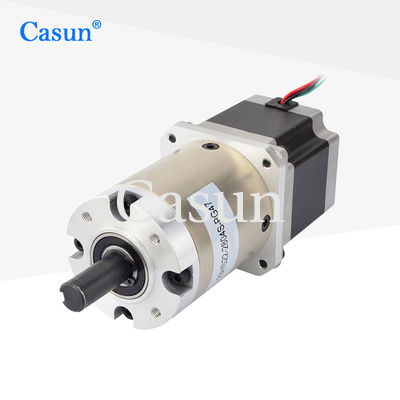

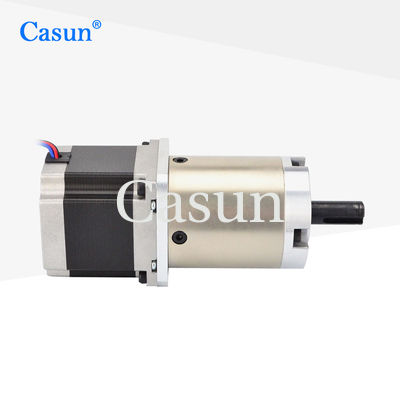

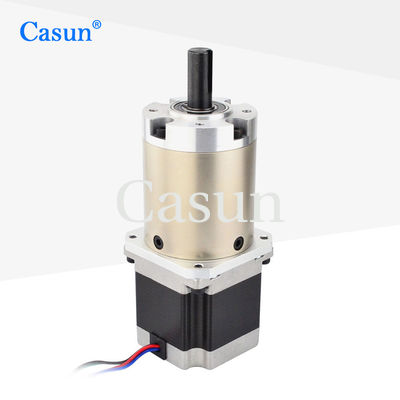

NEMA 23 Planetary Gearbox Stepper Motor Gear Reduction Ratio 47/1 For CNC Machine Medical Appliance Robotic Arm

NEMA 23 Planetary Gearbox Stepper Motor Gear Reduction Ratio 47/1 For CNC Machine Medical Appliance Robotic Arm

Brand Name:	Casun
Model Number:	57SHD4425-46G
MOQ:	1PC
Price:	$22.49-$27
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Reduction Ratio:

1:47

Body:

54mm

Electric Current:

2.8A

Packaging Details:

Carton:38x29x18cm

Highlight:

CNC Machine Planetary Gearbox Stepper Motor

NEMA 23 Planetary Gearbox Stepper Motor

Medical Appliance Planetary Gearbox Stepper Motor

Product Description

NEMA 23 Planetary Gearbox Stepper Motor Gear Reduction Ratio 47/1 For CNC Machine Medical Appliance Robotic Arm

The NEMA 23 reduction motor reduces speed and increases torque through a reduction mechanism, which can output greater torque at low speeds and is suitable for situations where high torque is required. Widely used in fields such as machine tool equipment, automated production lines, 3D printers, and more.

Key Features

Available in unipolar or bipolar versions
Multiple international certifications for electrical and high-tech devices
Custom services and contract manufacturing available
Dealer partnerships welcome
Customizations available on request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1250 mN.m
Resistance	0.9 Ω
Inductance	2.5 mH
Rotor Inertia	260 g-cm²
Motor Weight	1.1 kg
Gear Reduction Ratio	46.66:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤250N
Max. Shaft Axial Load	≤100N
Radial Play of Shaft (near to Flange)	≤0.08 mm
Axial Play of Shaft	≤0.4 mm
Backlash at No-load	≤2.5°

Available Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
41 mm	48 mm	3.6	90%
54 mm		4.25	90%
76 mm		60 mm	12.96	80%
83 mm		15.3	80%
100 mm		18.1	80%
Various	72 mm	46.66	70%
Various	72 mm	55.08	70%
Various	72 mm	65.025	70%
Various	72 mm	76.77	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.
