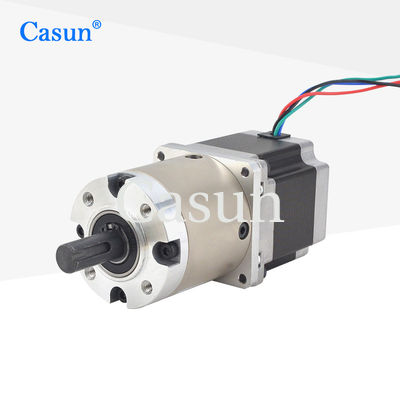

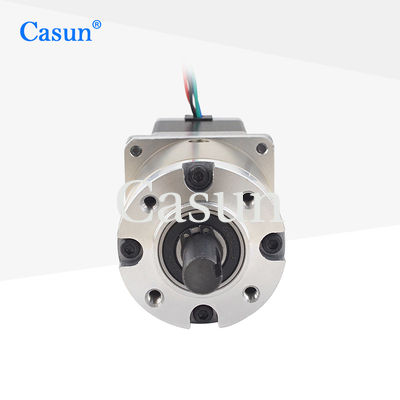

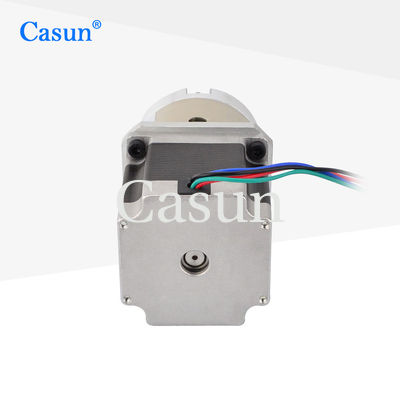

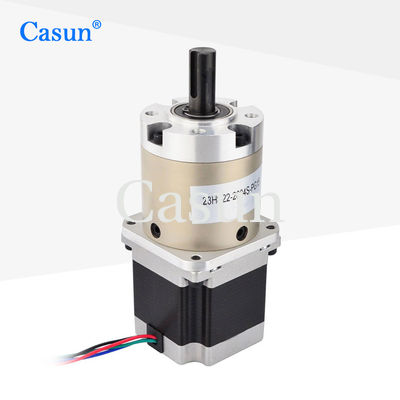

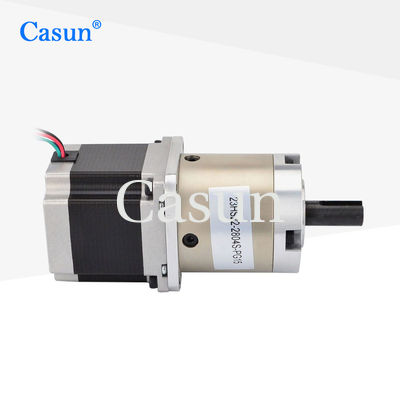

NEMA23 Ratio 15/1 Geared Stepper Motor With Gearbox Planetary Reducer 57mm Stepping Motor

NEMA23 Ratio 15/1 Geared Stepper Motor With Gearbox Planetary Reducer 57mm Stepping Motor

Brand Name:	Casun
Model Number:	57SHD4425-15G
MOQ:	1PC
Price:	$22.49-$27
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Reduction Ratio:

15.3：1

Rated Current:

2.8A

Motor Weight:

1.1kg

Packaging Details:

Carton:38x29x18cm

Highlight:

57mm Geared Stepper Motor

Planetary Reducer Geared Stepper Motor

NEMA23 Geared Stepper Motor

Product Description

Stepper motors themselves have good positioning accuracy, and when combined with reducers, they can achieve higher positioning accuracy at low speeds.

It has been widely applied in fields such as automation, robotics, precision machinery, and medical equipment.

Features:

Versions in unipolar or bipolar are offered.
Deliver "multiple international certifications" for electrical and high-tech devices.
Available in single or double shaft versions
High torque and high precision
Our engineering team will contact you within two business days to present the optimal solution

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1250mN.m
Resistance	0.9 hm
Inductance	2.5 mH
Rotor Inertia	260 g-cm²
Motor weight	1.1 kg
Gear Reduction Ratio	15.3:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤250N

Max.Shaft Axial Load:≤100N

Radial Play of Shaft (near to Flange):≤0.08m

Axial Play of Shaft:≤0.4mm

Backlash at No-load:≤2.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
41 mm 54 mm 76 mm 83 mm 100 mm	48 mm	3.6	90%
		4.25
	60 mm	12.96	80%
		15.3
		18.1
	72 mm	46.66	70%
		55.08
		65.025
		76.77

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA23 Ratio 15/1 Geared Stepper Motor With Gearbox Planetary Reducer 57mm Stepping Motor 1

Please click the "Get a quote" button below to tell us your requirements.
